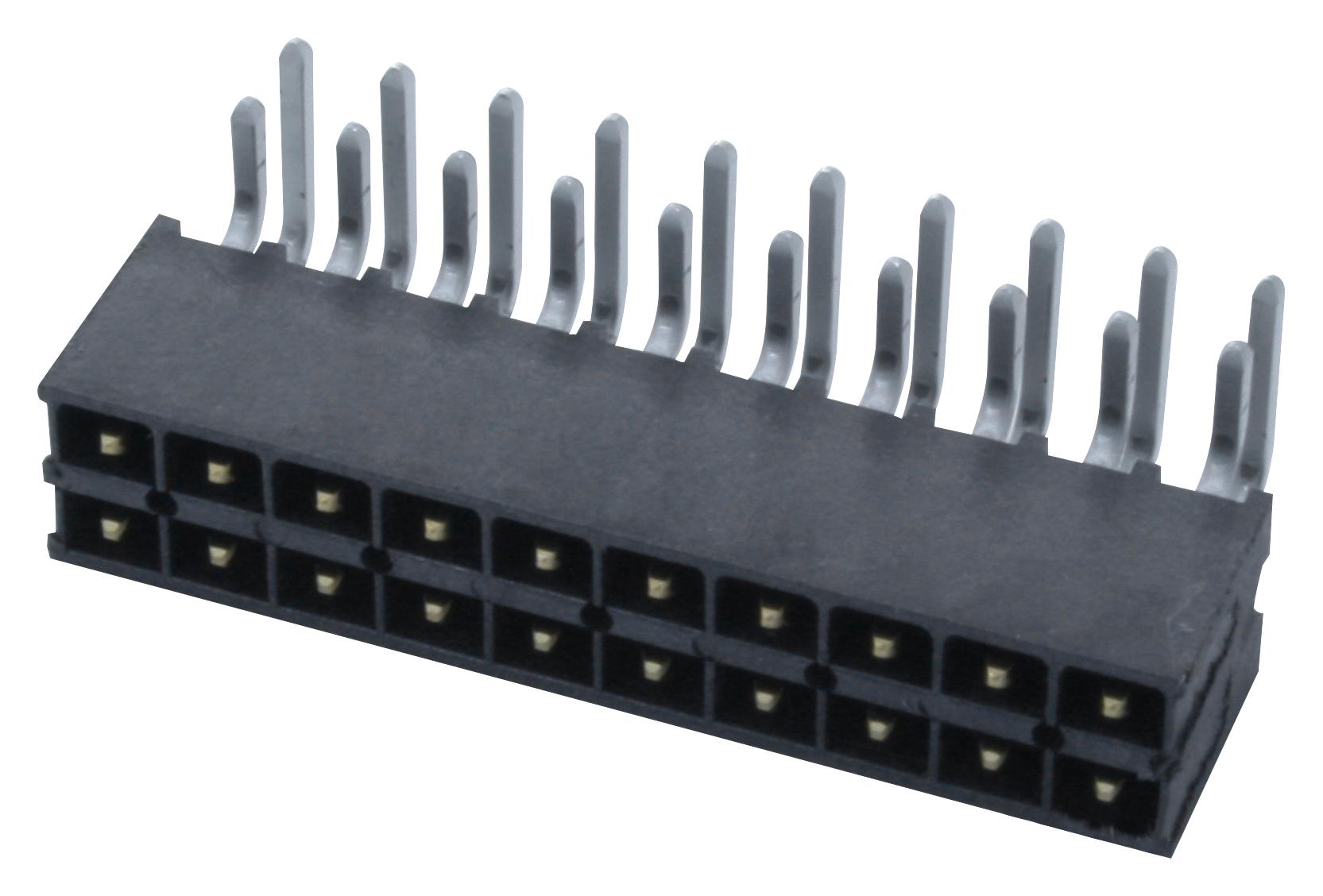

SAMTEC IPT111001SDRA Power Connector Strip
The IPT1-110-01-S-D-RA is a 20-position, two-row right-angle Mini Molded® isolated power connector terminal strip designed for industrial use. It features gold-plated phosphor bronze contacts for reliable conductivity and corrosion resistance, paired with a black liquid crystal polymer insulator for durable insulation. The connector mates with the IPS1 power socket strip, offering individually shrouded contacts for safety. It can handle up to 775VAC / 1095VDC voltage and operates efficiently within a temperature range of -55°C to 125°C, making it ideal for demanding industrial environments.
SAMTEC IPT111001SDRA Power Connector Strip Specifications:
- Contact Material: Phosphor Bronze with gold plating
- Insulator Material: Black Liquid Crystal Polymer (LCP)
- Voltage Rating: 775VAC / 1095VDC
- Operating Temperature Range: -55°C to 125°C
- Contact Plating: Gold over nickel
- Number of Positions: 20
- Number of Rows: Two
- Mounting Style: Right Angle
- Insulation: Individually shrouded contacts
- Connector Style: Mini Molded®
- Compatibility: Mates with IPS1 power socket strip
- Processing: Suitable for through-hole and surface mount
- RoHS Compliant: Yes
- Rated Current: 15.9A per contact
- Insertion Force: 2.6 oz (0.72 N) on SMT
- Withdrawal Force: 3.6A for SMT and 5.0 oz (1.39 N) for T/H
- Dimensions: Not specified, standard for 20-position power connectors
Buy the Samtec Series IPT1 Power Connector Strip: IPT111001SDRA
Buy the Samtec Series IPT1 power connector strip IPT111001SDRA online today. Featuring gold-plated contacts and a durable liquid crystal polymer insulator, this 20-position right-angle connector is ideal for industrial applications requiring high voltage and temperature stability. It offers individually shrouded contacts for safety, a voltage rating of 775VAC / 1095VDC, and excellent mechanical robustness. Perfect for demanding environments, this connector ensures reliable connectivity, ease of installation, and compliance with RoHS standards, making it a top choice for professional electrical and automation projects.
Order your Samtec Series IPT1 power connector strip IPT111001SDRA today and ensure your industrial projects are powered with reliable, high-voltage connectors.
Frequently Asked Questions
Where can I buy SAMTEC IPT111001SDRA?
You can click on the BUY or RFQ button to purchase IPT111001SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT111001SDRA?
You can download the IPT111001SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT111001SDRA?
SAMTEC
