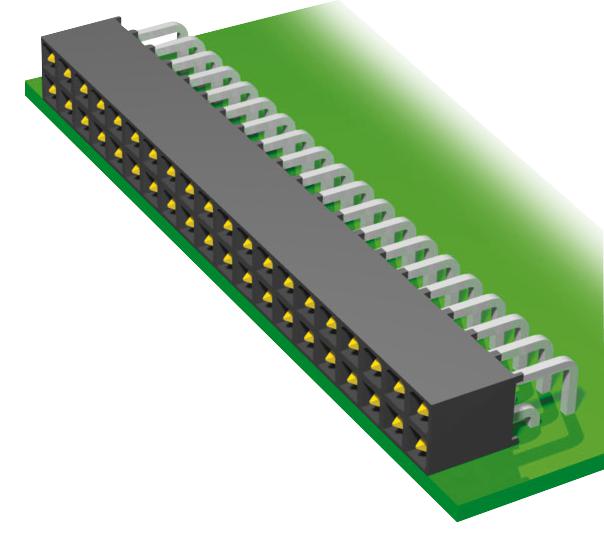

SAMTEC IPT112001LDRA High-Current Shrouded Connector
The IPT1-110-04-L-D is a compact, individually shrouded contact system suitable for both surface mount and through-hole applications. Manufactured with phosphor bronze contacts plated with tin or gold over SOU nickel, it offers a voltage rating up to 775 VAC/1095 VDC. The insulator is made of black LCP material. It supports high operating temperatures from -55°C to +125°C, with an insertion depth of up to .255 inches. Ideal for reliable electrical connections in demanding environments, it features optional locking clips and high current ratings of up to 15.9A per contact, ensuring secure, conductive, and RoHS-compliant connections.
SAMTEC IPT112001LDRA High-Current Shrouded Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over SOU (1.27 μm) Ni
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: Up to .255 inches
- Voltage Rating: 775 VAC/1095 VDC
- Current Rating: 15.9A per contact
- Wiping Distance: 0.38 mm (.015 inches)
- Insertion Force (SMT): 2.5 oz (0.72 N)
- Withdrawal Force (SMT): 3.6 oz (1.00 N)
- Insertion Force (Through-Hole): 6.0 oz (1.67 N)
- Withdrawal Force (Through-Hole): 5.0 oz (1.39 N)
- RoHS Compliant: Yes
- Lead Style: Surface Mount, Through-Hole, Right Angle
- Optional Locking Clip: Yes
- Lead Coplanarity: Max 0.13 mm (.005 inches)
Buy the Buy Samtec IPT1-110-04-L-D Part Number IPT112001LD Online
Purchase the Samtec IPT1-110-04-L-D online to ensure reliable electrical connections for demanding applications. With high current capacity up to 15.9A per contact, RoHS compliance, and versatile mounting options, this connector supports temperature ranges from -55°C to +125°C. Its robust phosphor bronze contacts and protective shrouding provide durability and secure connections in both surface mount and through-hole configurations. Ideal for industrial and electronic equipment requiring stable, high-performance connections, order now for fast delivery and quality assurance.
Order your Samtec Series IPT1-110-04-L-D today and experience dependable, high-current electrical connections in your projects.
Frequently Asked Questions
Where can I buy SAMTEC IPT112001LDRA?
You can click on the BUY or RFQ button to purchase IPT112001LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT112001LDRA?
You can download the IPT112001LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT112001LDRA?
SAMTEC
