SAMTEC IPT112001SDRA High-Current Connector
The IPT1 series is a high-performance, individually shrouded pin connector designed for reliable electrical connections in both surface mount and through-hole applications. Crafted with Phosphor Bronze contacts plated with Tin or Gold over Nickel, it offers high current ratings up to 15.9A per contact and voltage ratings up to 775 VAC/1095 VDC. Featuring insulators made from black LCP and suitable for operating temperatures from -55°C to +125°C, it provides robust mechanical stability, easy insertion and withdrawal forces, and optional locking clips. Compatible with various sizes and configurations, it ensures secure, precise connections essential in demanding electronic systems.
SAMTEC IPT112001SDRA High-Current Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.150" to 0.255"
- Wiping Distance: 0.015"
- Insertion Force (SMT): 3.0 oz (0.83 N), Withdrawal Force (SMT): 2.6 oz (0.72 N)
- Insertion Force (Through-Hole): 6.0 oz (1.67 N), Withdrawal Force: 5.0 oz (1.39 N)
- Current Rating: 15.9A per contact
- Voltage Rating: 775 VAC / 1095 VDC
- RoHS Compliant: Yes
- Number of pins: 10
- Applications include: electronic systems requiring high current and voltage capacity with secure connections
- Features: Individually shrouded contacts, optional locking clips, surface mount and through-hole options
- Processing: Suitable for SMT, through-hole, right angle, surface mount, and other configurations

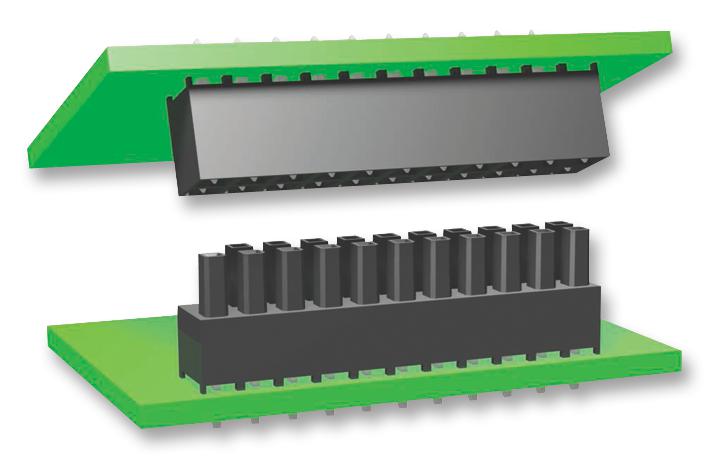

Buy the Samtec Series IPT1 High-Current Connector: IPT112001SDRA
Secure your electronic connections with the high-performance IPT1 series connector from Samtec. Designed for reliability with high current rating of up to 15.9A per contact and voltage up to 775 VAC. Crafted with durable Phosphor Bronze contacts plated with Tin or Gold over Nickel, it features robust insulators made from black LCP and supports operating temperatures from -55°C to +125°C. Suitable for surface mount and through-hole applications, it ensures secure, precise, and long-lasting connections for demanding electronic systems. Purchase online today for quality and durability.
Get Samtec IPT112001SDRA today—built for precision, high current capacity, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC IPT112001SDRA?
You can click on the BUY or RFQ button to purchase IPT112001SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT112001SDRA?
You can download the IPT112001SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT112001SDRA?
SAMTEC
