SAMTEC ISDF05D High-Density PCB Connector
The ISDF05D series features high-quality, surface-mount connectors with Black Liquid Crystal Polymer insulators and Phosphor Bronze terminals. These connectors operate at voltage ratings up to 250 VAC, with RoHS compliance and lead-free, solderable construction. Designed for versatile circuit applications, they offer precise dimensions, robust plating, and temperature resilience from -55°C to +105°C. Suitable for PCB assembly, these connectors ensure reliable electrical performance and easy installation in professional electronics and industrial systems.
SAMTEC ISDF05D High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: 0.050 x Au or Sn over Ni
- Voltage Rating: 250 VAC
- Operating Temp Range: -55°C to +105°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Surface Mount Compatibility: Yes
- Dimensions: Length varies with options, typical pin spacing 1.27 mm, 1.60 mm, height and width tailored for PCB mounting
- Certification: RoHS compliant, suitable for professional electronic manufacturing
- Connector Type: Surface Mount, Through-Hole options available
- Process Compatibility: Compatible with standard PCB assembly processes
- Application: Suitable for high-density electronic and industrial control systems

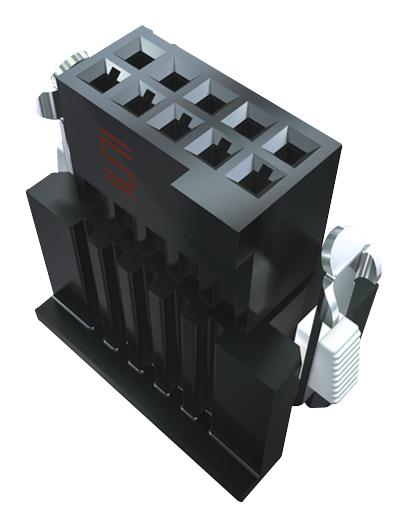

Buy the Samtec Series TFM: ISDF05D high-density PCB Connector PartNumber
Discover the dependable quality of the Samtec Series TFM high-density PCB connector, featuring advanced Liquid Crystal Polymer insulators and Phosphor Bronze terminals. Perfect for industrial electronics, these connectors provide efficient, solderable, surface-mount solutions compatible with standard PCB assembly processes. With a voltage rating of 250 VAC and RoHS compliance, they ensure safety and durability in demanding environments. Easy to install, reliable, and built for longevity, order your Samtec high-density connector online today and elevate your electronic systems with trusted performance and professional quality.
Order your Samtec Series TFM ISDF05D high-density PCB connector today and ensure reliable, professional-grade connections for your electronics projects.
Frequently Asked Questions
Where can I buy SAMTEC ISDF05D?
You can click on the BUY or RFQ button to purchase ISDF05D from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ISDF05D?
You can download the ISDF05D datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ISDF05D?
SAMTEC
