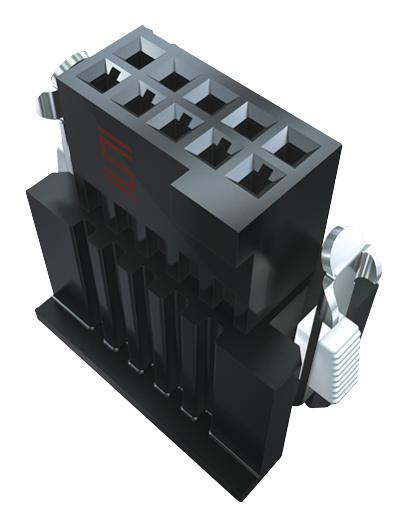

SAMTEC ISDF07SM High-Density PCB Connector
The ISDF07SM is a high-quality, surface-mount connector designed for precise PCB connections in electronic assemblies. Constructed with robust black Liquid Crystal Polymer insulators and phosphor bronze terminals plated with gold over nickel, it offers excellent electrical performance and durability suitable for temperature ranges from -55°C to +125°C. Its RoHS compliance ensures environmentally safe manufacturing. Compatible with various mounting options including SMT and through-hole configurations, this connector supports voltage ratings up to 250 VAC and includes options for different pin counts and configurations, making it ideal for complex electronic systems requiring reliable connections.
SAMTEC ISDF07SM High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over Nickel, 50u" Ni
- Voltage Rating: 250 VAC
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: (0,10 mm) .004" max, (0,15 mm) .006" max
- Number of Pins: varies by configuration (e.g., 5, 10, 15, 20, 25, 40, 50, 125, 175, 220, 225)
- Physical Dimensions: Compatible with 0.89 mm (0.035 inch) PCB thickness, pin spacing varies with configuration
- Mounting Options: Surface-mount and through-hole
- Certifications: RoHS compliant
Buy the Buy Samtec ISDF07SM Part Number 07SM Online
Order the Samtec ISDF07SM connector now for high-performance PCB connections. Featuring durable Liquid Crystal Polymer insulation and gold-plated terminals, it ensures reliable electrical performance across temperature ranges from -55°C to +125°C. Suitable for surface-mount and through-hole mounting, this RoHS-compliant connector supports various pin configurations and voltage ratings up to 250 VAC. Its precision coplanarity and lead-free process make it perfect for demanding electronic assemblies, offering long-lasting durability and excellent connectivity in manufacturing or repair environments.
Get Samtec ISDF07SM today—crafted for reliable PCB connections in demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC ISDF07SM?
You can click on the BUY or RFQ button to purchase ISDF07SM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ISDF07SM?
You can download the ISDF07SM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ISDF07SM?
SAMTEC
