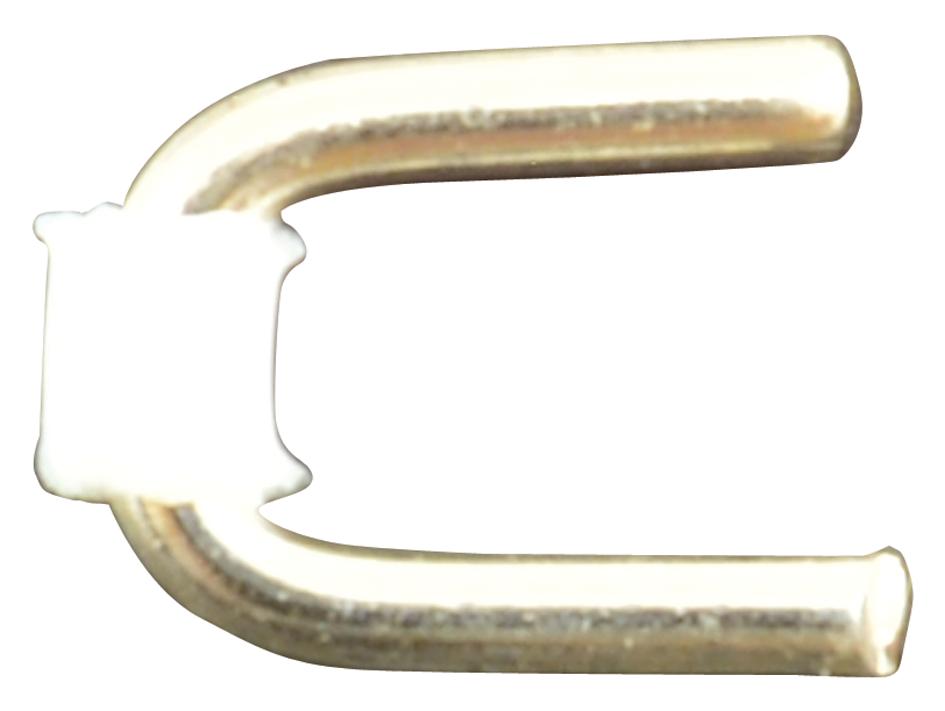

SAMTEC JL10025T Jumper Connector
The JL-100-25-T is a two-position jumper (busbar) with white PTFE insulation, designed for efficient connection in industrial environments. It features glass-filled polyester insulators and phosphor bronze contacts, providing reliable electrical performance. Suitable for currents up to 4.3 A per pin with a voltage rating of 450 VAC, it supports operating temperatures from -55°C to +125°C. The jumper's insertion depth ranges from 2.29 mm to 4.32 mm depending on the model, with a lead wire size of 0.51 mm to 0.64 mm, ensuring durable, high-quality connections in complex assemblies.
SAMTEC JL10025T Jumper Connector Specifications:
- Insulator Material: Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Current Rating: SNT=4.3 A per pin, MNT=3.9 A per pin
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Working Voltage: MNT=450 VAC
- Insertion Depth: SNT=4.32 mm, 2SN=2.29 mm, SNM=3.43 mm
- Lead: 0.51 mm (0.020'') to 0.64 mm (0.025'')
- Insertion Force: 33 oz (9.17 N)
- Withdrawal Force: 27 oz (7.51 N)
- RoHS Compliant: Yes
Buy the Buy SAMTEC Jumper Part Number JL10025T Online
Purchase the SAMTEC JL-100-25-T jumper online today for your industrial and electronic projects. This two-position jumper features durable glass-filled polyester insulators and phosphor bronze contacts capable of handling 4.3 A per pin at 450 VAC. Its temperature range of -55°C to +125°C guarantees performance in demanding environments. Designed for easy insertion with depths of up to 4.32 mm and compatible with wire sizes from 0.51 mm to 0.64 mm, it guarantees secure, reliable electrical connections for complex systems.
Order your SAMTEC Series JL10025T jumper today and ensure reliable high-current connections in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC JL10025T?
You can click on the BUY or RFQ button to purchase JL10025T from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part JL10025T?
You can download the JL10025T datasheet or visit the SAMTEC website for support.
Who is the manufacturer of JL10025T?
SAMTEC
