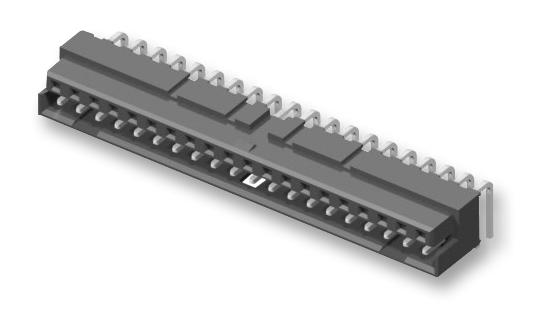

SAMTEC LS211001FDRA1 self mating strip
The LS2 NoMa Lead UNC Tail is a hermaphroditic self-mating strip with a 2.00 mm pitch designed for industrial uses. Crafted with phosphor bronze contact material and matte tin plating, it supports a maximum current of 3.2 A per pin and voltage rating of 475 VAC when mated with LS2 series connectors. Suitable for surface mount and through-hole applications, it features an alignment pin, coplanarity options, and multiple stacking heights. Designed for reliable electrical connections, it operates within a temperature range of -55°C to +105°C, ensuring durability in demanding environments.
SAMTEC LS211001FDRA1 self mating strip Specifications:
- Pitch: 2.00 mm
- Contact Material: Phosphor Bronze
- Plating: Matte Tin with Au or Sn over 50 μm Ni
- Current Rating: 3.2 A per pin
- Voltage Rating: 475 VAC
- Operating Temperature: -55°C to +105°C
- Mounting Options: Surface Mount and Through-Hole
- Number of Positions: varies
- Coplanarity: max. 0.008 inch (0.15 mm)
- Leading Edge: SMT lead coplanarity, alignment pins included
- Additional options: stack heights, shroud positions, tape & reel packaging
- Processing: Lead-Free Solderable, Tape & Reel available, compliant with RoHS
- Application: Reliable connections for industrial automation, electronics, and manufacturing equipment.
Buy the Tiger LS211001FDRA1 – Reliable Self Mating Strip for Industrial Applications
Purchase the Tiger LS211001FDRA1 self-mating strip online now for use in automated systems, electronic assemblies, and industrial equipment. Designed with high-quality phosphor bronze contacts and matte tin plating, it offers excellent electrical performance and durability. This reliable connector supports surface mount and through-hole installation methods, provides high current capacity of 3.2 A per pin, and is rated for 475 VAC. Suitable for demanding applications, it ensures secure connections and meets RoHS compliance for environmentally responsible manufacturing.
Get Tiger LS211001FDRA1 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC LS211001FDRA1?
You can click on the BUY or RFQ button to purchase LS211001FDRA1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LS211001FDRA1?
You can download the LS211001FDRA1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LS211001FDRA1?
SAMTEC
