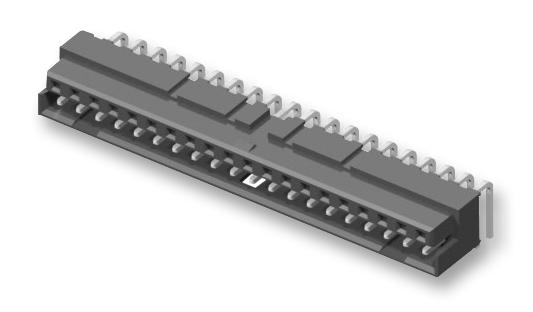

SAMTEC LS211501FDRA1 Hermaphroditic Connector
The LS2 Series Self Mating Hermaphroditic Strip is a versatile, high-current connector with a 2.00 mm pitch, designed for surface-mount and through-hole applications. It features gold flash plating, matte tin on the tail, and phosphor bronze contacts for reliable connectivity. Rated for 3.2 A per pin and 475 VAC, it offers options for right-angle configurations, tape & reel packaging, and various stack heights. Ideal for demanding electronic assemblies requiring secure, space-efficient connectors with flexible mounting options.
SAMTEC LS211501FDRA1 Hermaphroditic Connector Specifications:
- Pitch: 2.00 mm
- Current Rating: 3.2 A per pin
- Voltage Rating: 475 VAC
- Contact Material: Phosphor Bronze
- Plating: Matte Tin on tail, gold flash on contact
- Insulator Material: Matte Tin on tail
- Temperature Range: -55°C to +105°C
- Max SMT Lead Coplanarity: 0.008 inches
- Package Options: Tape & Reel, full reel available
- Number of positions: Varies by configuration
- Mounting: Surface mount and through-hole options
- Durability: Suitable for repeated mating and unmating
Buy the Buy Samtec LS2 Series Self Mating Hermaphroditic Strip Part Number LS211501FDRA1 Online
Discover the convenient online purchase of the Samtec LS2 Series Self Mating Hermaphroditic Strip. Engineered for high current capacity with a 2.00 mm pitch, it features gold flash plating and matte Tin on tail for durability. Suitable for surface-mount and through-hole applications, this connector provides flexible configurations including right-angle options, tape & reel packaging, and various stack heights. Trust this connector for secure connections, easy installation, and efficient electronic assembly in demanding environments.
Buy Samtec LS211501FDRA1 now and experience unmatched reliability and performance in high-current connector applications.
Frequently Asked Questions
Where can I buy SAMTEC LS211501FDRA1?
You can click on the BUY or RFQ button to purchase LS211501FDRA1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LS211501FDRA1?
You can download the LS211501FDRA1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LS211501FDRA1?
SAMTEC
