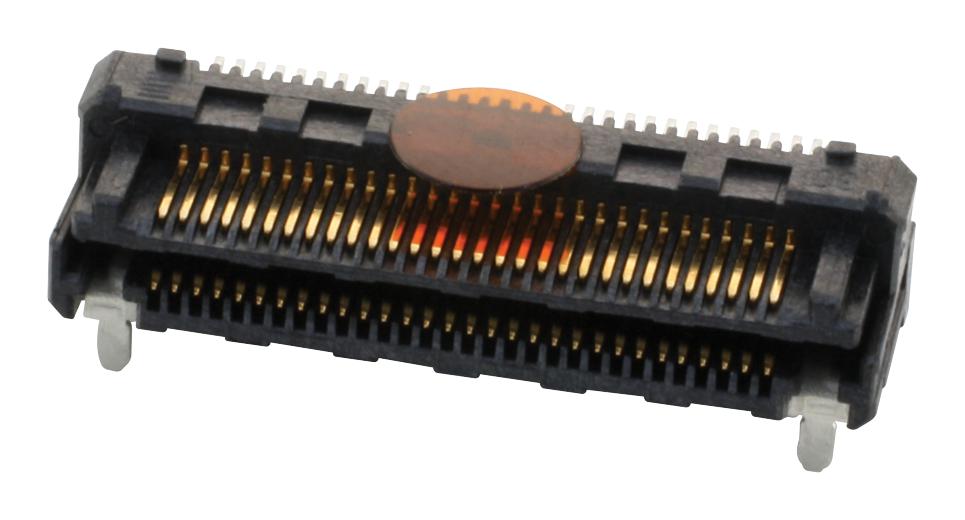

SAMTEC LSHM110025LDVASKTR High-Speed Connector
The LSHM series high-speed, high-density connector provides reliable board-to-board connections with a compact design. Made from black liquid crystal polymer and phosphor bronze contacts, it features gold or tin plating over nickel, supporting currents up to 2.0A per pin. Designed for operating temperatures from -55°C to +125°C, these connectors are RoHS compliant and suitable for applications requiring high retention, rugged stacking, and high-speed data transfer. Available in various stack heights with audible click connections for secure mating and ease of assembly.
SAMTEC LSHM110025LDVASKTR High-Speed Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 μm) Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Stack Height Options: 3.0 mm, 4.0 mm, 6.0 mm, 10.0 mm, 12.0 mm
- Mated Height Tolerance: ±0.10 mm
- Operational Features: Audible click, high retention, ruggedized design, high-speed performance
- Processing Conditions: Suitable for SMT lead coplanarity, non-standard lengths may be non-returnable
Buy the Buy Samtec LSHM Series Part Number LSHM110025LDVASKTR Online
Purchase the Samtec high-density connector online today for reliable, high-speed electrical connections suitable for demanding electronic applications. Designed for rugged performance, this connector features gold or tin plating over nickel, supporting currents up to 2A per pin. Its black liquid crystal polymer insulator and phosphor bronze contacts ensure durability and excellent electrical performance. The connector operates within -55°C to +125°C, meets RoHS standards, and offers various stack heights with audible click for secure assembly. Ideal for high-density electronic systems and board stacking applications.
Get Samtec LSHM110025LDVASKTR today—built for high-speed connections and durable board stacking solutions.
Frequently Asked Questions
Where can I buy SAMTEC LSHM110025LDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM110025LDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM110025LDVASKTR?
You can download the LSHM110025LDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM110025LDVASKTR?
SAMTEC
