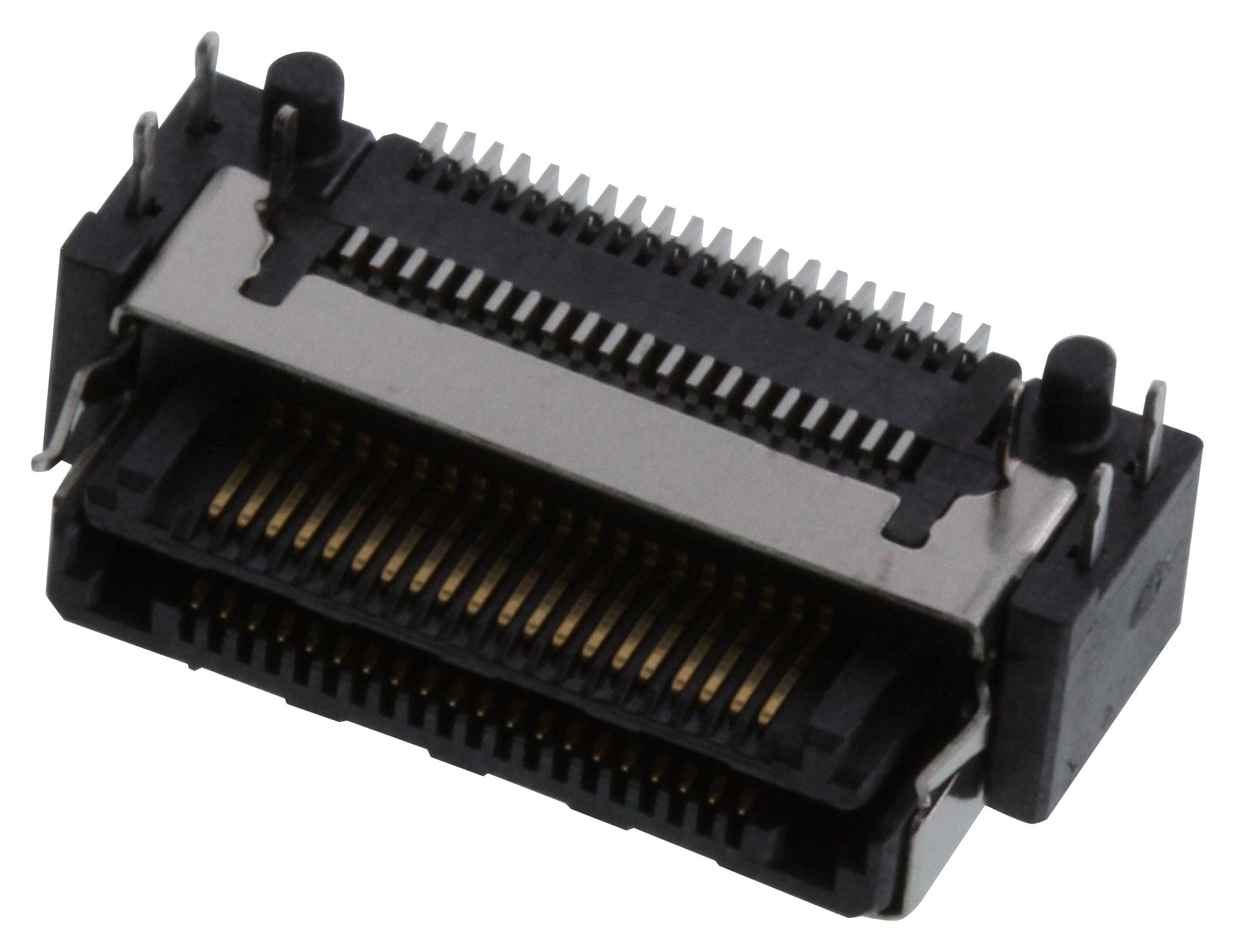

SAMTEC LSHM12001FRHASKTR High-Density Micro Connector
The Razor Series self-mating connectors feature ultra-fine 0.50 mm pitch with multiple stack height options from 5.00 mm to 12.00 mm. Designed for high-density applications, these connectors offer an audible click, increased mating and unmating forces, and optional shielding and lubrication. They are available in different sizes and configurations, including vertical and right-angle styles, with options for gold flash and tape & reel packaging. Suitable for miniature, high-performance electronic assemblies requiring reliable, high-force connections and coplanarity. Compliant with lead-free standards, they serve demanding industrial and consumer electronics projects.
SAMTEC LSHM12001FRHASKTR High-Density Micro Connector Specifications:
- Pitch: 0.50 mm (.0197 inches)
- Stack Height Options: 5.00 mm to 12.00 mm (various models)
- Current per pin: LSHM: 2.0 A, LSS: 1.7 A, LSEM: 1.8 A
- Insulator Material: Black LCP
- Operating Temperature Range: -55°C to +125°C
- Lead-Free: Yes
- Contact Plating: Matte Tin, Gold flash options available
- Cable Length & Packaging: Tape & Reel, full reel options, 10-50 positions available
- Design Features: Audible click, high mating/unmating forces, coplanarity, shield option, lubricated option, high-density, miniature, male and female connectors
- Style Options: Vertical, right-angle, with various tail and pin configurations
- Certifications: RoHS compliant, UL certified, suitable for industrial applications
Buy the Razor Series 12001 U+2013 Reliable High-Density Connectors for Industrial Applications
Purchase the high-density micro connector from the Razor Series online today and enjoy fast shipping, competitive pricing, and expert support. These connectors are perfect for demanding applications requiring precise, reliable connections in limited spaces. Designed with multiple stack heights, high mating forces, and optional features like shielding and lubrication, they are ideal for high-performance electronic assemblies. Whether you need vertical or right-angle configurations, our online store provides easy ordering, detailed specifications, and trusted quality assurance to support your industrial and consumer electronics needs.
Order your Samtec Razor Series 12001 high-density connectors today and ensure your electronic projects achieve reliable, high-force connections with coplanarity and optional shielding.
