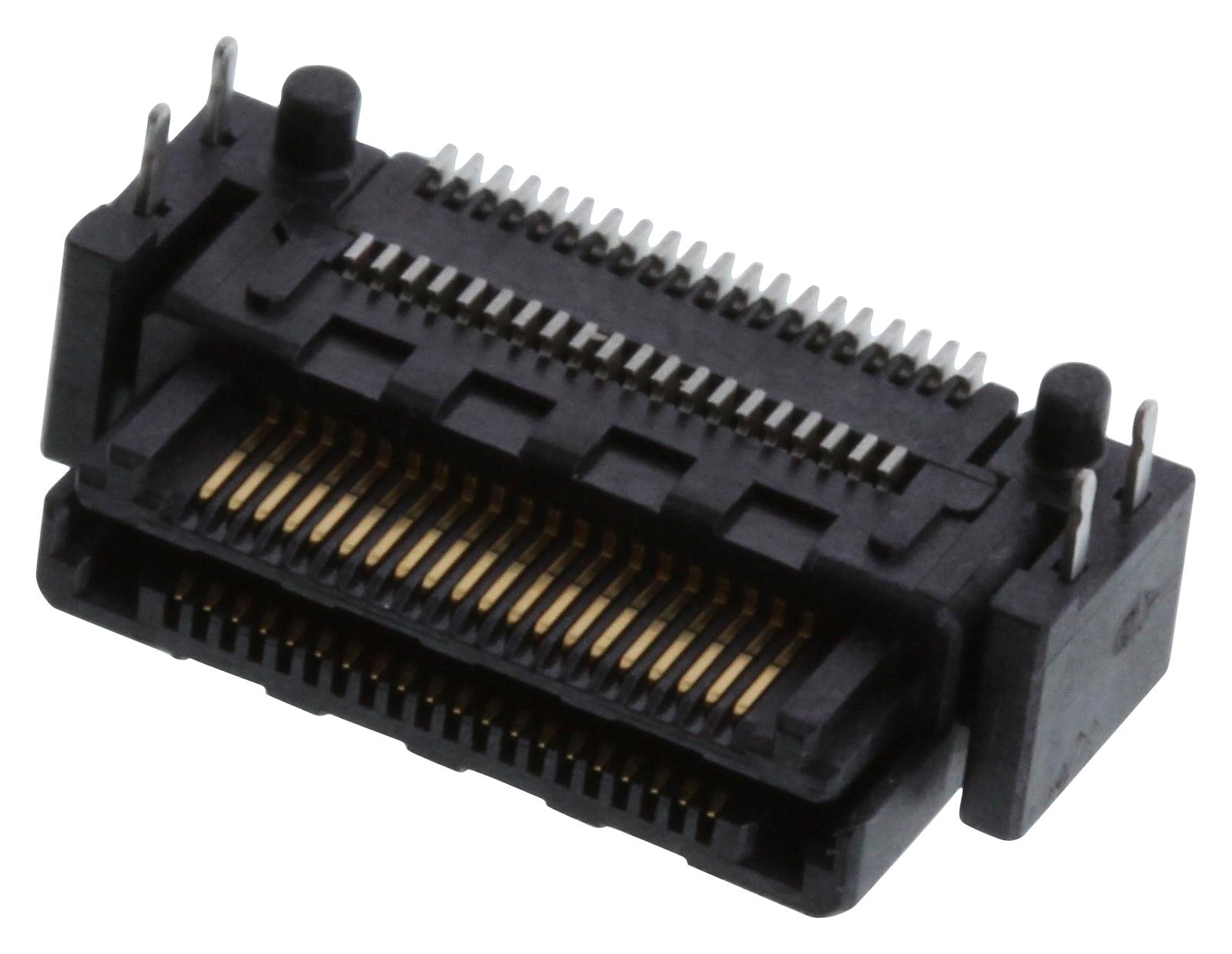

SAMTEC LSHM12001LRHANKTR Self Mating Connectors
The Razor self-mating connectors feature a slim body design with 0.50 mm pitch, available in multiple stack heights from 5.00 mm to 12.00 mm. Their high mating and unmating forces provide secure connections, with options including shield and lubricated variants for added durability and performance. Suitable for high-density applications, these connectors support parallel, perpendicular, and coplanar systems, and are designed for lead-free environments with a temperature rating from -55°C to +125°C. They ensure efficiënt assembly and reliable electrical performance in compact electronic modules.
SAMTEC LSHM12001LRHANKTR Self Mating Connectors Specifications:
- Pitch: 0.50 mm (0.0197 inches)
- Stack Heights: 5.00 mm to 12.00 mm
- Number of positions: 5, 8, 10, 12, 14, 20, 30, 40, 50
- Current per pin: LSHM 2.0 A, LSS 1.7 A, LSEM 1.8 A
- Material: Black LCP insulator, gold-flashed or tin on tail contact
- Operating Temperature Range: -55°C to +125°C
- Features: Audible click, optional shield and lubricated versions, high mating forces
- Lead-Free: Yes, compliant with environmental standards
- Design: Self-mating system, parallel, perpendicular, coplanar orientations
- Packaging: Tape & Reel for easy automation
- Certifications: Compliant with industry standards
- Maximum tail diameter: 0.25 mm (0.010 inches)
Buy the Buy Samtec Razor Self Mating Connectors Part Number LSHM12001LRHANKTR Online
Order Samtec Razor self-mating connectors online to experience high-density, secure connections with 0.50 mm pitch. These connectors feature multiple stack heights from 5.00 mm to 12.00 mm, supporting parallel, perpendicular, and coplanar systems. Their durable design includes options for shield and lubrication, ensuring long-lasting performance in demanding environments. Ideal for compact electronic modules, they provide high mating and unmating forces, ensuring reliable electrical performance. Purchase today for quick delivery and efficient assembly of your electronic projects.
Get Samtec Razor connectors today—designed for high-density, reliable electronic assemblies with multiple stack height options and secure mating force.
Frequently Asked Questions
Where can I buy SAMTEC LSHM12001LRHANKTR?
You can click on the BUY or RFQ button to purchase LSHM12001LRHANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM12001LRHANKTR?
You can download the LSHM12001LRHANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM12001LRHANKTR?
SAMTEC
