SAMTEC LSHM120025LDVASKTR High-Density PCB Connector
The LSHM series are compact, high-density connectors designed for reliable PCB integration in high-speed applications. Featuring black liquid crystal polymer insulators and phosphor bronze contacts, these connectors support current ratings up to 2.0A per pin with gold or tin plating over nickel. They operate within a temperature range of -55°C to +125°C and are RoHS compliant. Suitable for stacking and shielding configurations, the LSHM connectors offer slim, flexible designs, audible click mating indicators, and compatibility with flexible power and signal solutions. Ideal for high-speed data transfer in dense electronic systems.
SAMTEC LSHM120025LDVASKTR High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ
- (1.27 μm) Ni
- Current Rating: 2.0A per pin (two adjacent pins powered)
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004 inch) max
- Board Stacking: Supports multiple connectors per board, contact info for details
- Height Options: Range from 3.0 mm to 12.0 mm depending on style
- Connector Style: Standard and lubricated, high retention contacts
- Compatibility: Designed for high-speed channel performance, shielding, and high-density applications
- Application: PCB connectors for high-speed data, signal, and power transmission

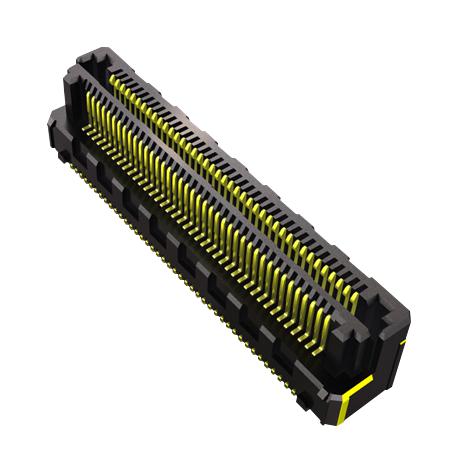

Buy the Buy Samtec LSHM120025LDVASKTR Part Number Online
Purchase the Samtec high-density PCB connector LSHM120025LDVASKTR online to ensure reliable electrical performance, optimal space utilization, and advanced high-speed capabilities. This connector features gold or tin plating for enhanced durability and conductivity, supports operating temperatures from -55°C to +125°C, and complies with RoHS standards. Its compact design includes multiple stacking options, audible mating click, and compatibility with shielding. Ideal for high-speed data transfer and dense electronic systems, ordering online guarantees fast delivery and quality assurance for your critical projects.
Order your Samtec Series LSHM120025LDVASKTR today and ensure dependable high-speed connectivity in your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC LSHM120025LDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM120025LDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM120025LDVASKTR?
You can download the LSHM120025LDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM120025LDVASKTR?
SAMTEC
