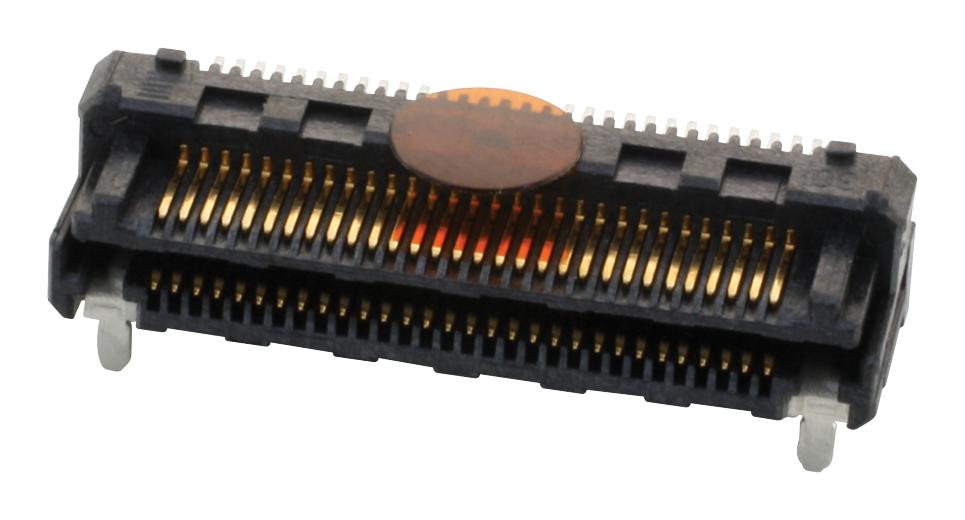

SAMTEC LSHM120030LDVASTR High-Speed Hermaphroditic Connector
The LSHM series is a high-density, hermaphroditic strip connector designed for PCB applications, featuring a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating. Supporting current ratings up to 2.0A per pin and operating temperatures from -55°C to +125°C, the connector offers high-speed performance and reliable mating with audible click feedback. Suitable for applications requiring multiple connectors or flexible stacking, it ensures low-cost, high-performance connectivity in demanding environments.
SAMTEC LSHM120030LDVASTR High-Speed Hermaphroditic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μm Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004") max
- Suitable for multiple stacking and high-speed signal applications
- Mated height options vary from 3.0 mm to 12.0 mm depending on style
- Supports high-density, slim, and flexible connector configurations
- Includes audible click for proper mating, compatible with shielded systems
- Designed for reliable performance and low-cost manufacturing
Buy the Samtec Series LSHM High-Speed Connector: LSHM120030LDVASTR
Order the Samtec LSHM120030LDVASTR online today to ensure high-quality, reliable, and cost-effective PCB connections. With durable construction, high current capacity, and excellent signal integrity, this connector is ideal for demanding electronic assemblies. The compact design supports multi-stack configurations and provides audible click feedback for easy mating. Perfect for high-speed digital and power applications, it ensures long-term performance, low maintenance, and simple installation—making it the perfect choice for manufacturers and engineers seeking efficient, high-density connectivity solutions.
Buy Samtec LSHM120030LDVASTR now and experience unmatched reliability and performance in high-speed PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM120030LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM120030LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM120030LDVASTR?
You can download the LSHM120030LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM120030LDVASTR?
SAMTEC
