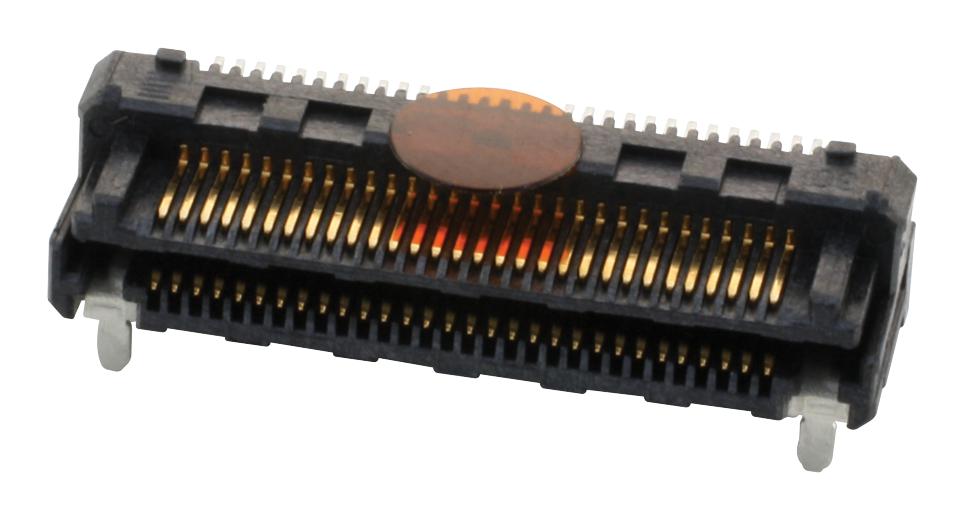

SAMTEC LSHM120040LDVASTR High-speed Board Mates
The LSHM series high-speed and high-density board mates feature a shielded connector system with liquid crystal polymer insulator and phosphor bronze contact material. They support operating temperatures from -55°C to +125°C, with gold or tin plating over nickel, facilitating reliable, low-cost connectivity for demanding applications. Designed for SMT lead coplanarity, stacking, and ruggedized use, these connectors provide up to 2.0A per pin, audible click feedback, and RoHS compliance, making them ideal for flexible, high-performance electronic assemblies.
SAMTEC LSHM120040LDVASTR High-speed Board Mates Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 um) Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55 °C to +125 °C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Board Stacking: Supports multiple connectors per board
- Mated Height: 3.0 mm to 12.0 mm depending on style
- Contact Pitch: 2.5 mm
- Signaling: Supports high-speed and high-density applications
- Mechanical Features: Audible click, high retention, ruggedized design
Buy the Buy Samtec LSHM Series Part Number LSHM120040LDVASTR Online
Experience the reliability and high performance of Samtec's high-speed board mates by ordering online today. Featuring liquid crystal polymer insulator, phosphor bronze contacts with gold or tin plating, and RoHS compliance, these connectors support demanding electronic applications. With a current rating of 2.0A per pin, support for multiple stacking configurations, audible click feedback, and operating temperatures from -55°C to +125°C, they are ideal for high-density, flexible, and ruggedized electronic assemblies, ensuring seamless connectivity and durability.
Order your Samtec LSHM120040LDVASTR high-speed board mates today and ensure your electronic projects benefit from dependable, high-density connectivity with rugged durability.
Frequently Asked Questions
Where can I buy SAMTEC LSHM120040LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM120040LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM120040LDVASTR?
You can download the LSHM120040LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM120040LDVASTR?
SAMTEC
