SAMTEC LSHM130025LDVASTR Hermaphroditic Strip Connector
The LSHM series high-speed, high-density hermaphroditic strip connectors offer reliable, low-cost PCB connectors suitable for applications requiring two or more connectors per board. Made with phosphor bronze contact material and gold or tin plating over nickel, these connectors feature a black liquid crystal polymer insulator for reduced inventory costs and high-temperature resistance from -55°C to +125°C. Options include board stacking, shrouded mated height, and high retention contacts, ideal for compact, flexible electronic systems requiring up to 2.0A per pin.
SAMTEC LSHM130025LDVASTR Hermaphroditic Strip Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" Ni
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 2.0A per pin
- Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Mated Height: Design options from 3.0 mm to 12.0 mm
- Lead-Free Solderable: Yes
- Processing: Compatible with surface-mount technology
- Board Stacking: Supports multiple connectors per board
- Durability: High retention contacts with audible click
- Standard Lengths: Custom options available, non-returnable for some lengths
- Certifications: RoHS compliant, specifications subject to change

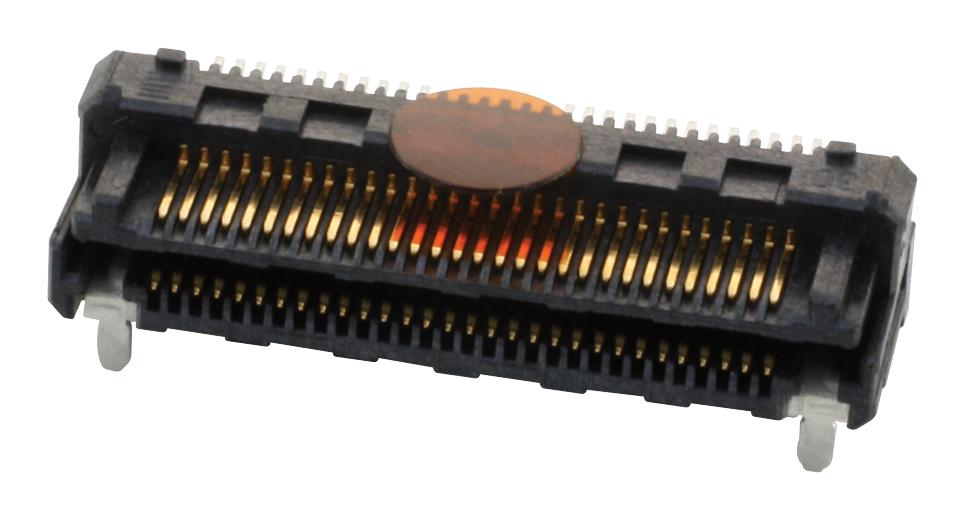

Buy the Buy Samtec LSHM130025LDV High-Speed Hermaphroditic Strip Connector Part Number 130025LDV
Order Samtec LSHM130025LDV high-speed hermaphroditic strip connector online today and ensure your electronic projects benefit from reliable, compact, and cost-effective PCB connections. Perfect for high-density systems requiring up to 2.0A per pin, these connectors feature RoHS compliance, durable gold or tin plating, and a liquid crystal polymer insulator that supports operating temperatures from -55°C to +125°C. With various mated heights and stacking options, it offers versatility and ease of assembly for sophisticated electronic designs. Purchase now for fast delivery and technical support.
Get Samtec LSHM130025LDV today—designed for high-speed electronic systems with high-density, reliable connections, and flexible stacking options.
Frequently Asked Questions
Where can I buy SAMTEC LSHM130025LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM130025LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM130025LDVASTR?
You can download the LSHM130025LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM130025LDVASTR?
SAMTEC
