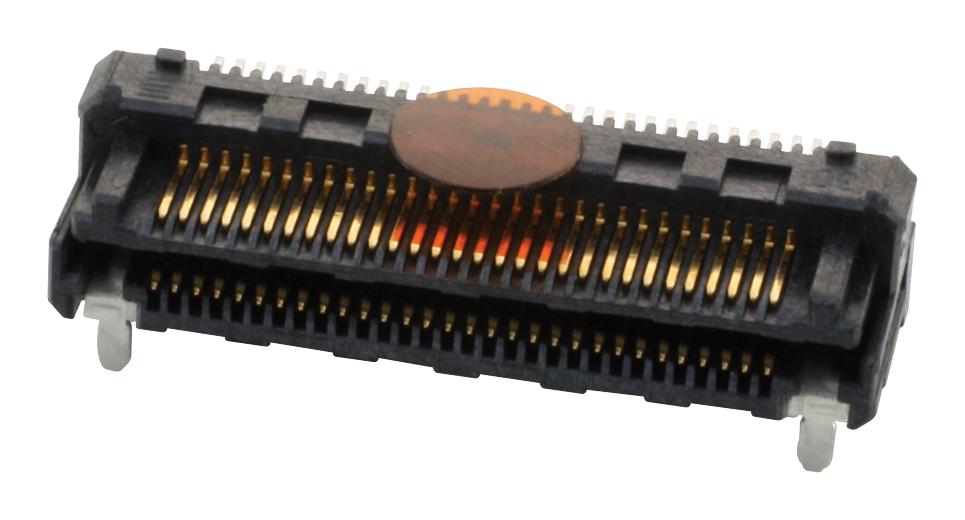

SAMTEC LSHM130030FDVASKTR High-Speed Connector
The LSHM-DV Series high-speed, high-density board mating connectors feature black liquid crystal polymer insulators and phosphor bronze contacts plated with gold or tin over nickel. Designed for reliable PCB connections, these connectors support current ratings up to 2.0A per pin, operate within -55°C to +125°C, and are RoHS compliant. They enable stacking configurations requiring multiple connectors per board, with mated heights ranging from 3.0 mm to 12.0 mm. Suitable for demanding applications, they ensure low-cost, flexible, and high-performance connections with audible click for proper mating.
SAMTEC LSHM130030FDVASKTR High-Speed Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ
- Operating Temp Range: -55°C to +125°C
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- RoHS Compliant: Yes
- Stacking height options: 3.0 mm to 12.0 mm
- Mated height varies with configuration, supporting multi-connector stacking
- Tactile audible click ensures proper mating
- Lead-Free solderable and compatible with SMT processes
- Designed for high-speed data transfer and high-density board applications
- Low-cost and flexible design suitable for complex PCB systems
Buy the Samtec Series LSHM High-Speed Connector: LSHM130030FDVASKTR
Order the Samtec LSHM130030FDVASKTR high-speed connector online today to ensure fast, reliable PCB connections. This high-density connector features liquid crystal polymer insulators, gold or tin plating, and supports stacking configurations from 3.0 mm to 12.0 mm height. Engineered for high-speed data transfer, low-cost implementation, and long-term durability, it offers an audible click for proper mating and RoHS compliance. Perfect for demanding electronic systems requiring efficient, secure connections in space-constrained applications. Purchase now for optimal system performance.
Buy Samtec LSHM130030FDVASKTR now and experience unmatched reliability and performance with high-speed, high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM130030FDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM130030FDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM130030FDVASKTR?
You can download the LSHM130030FDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM130030FDVASKTR?
SAMTEC
