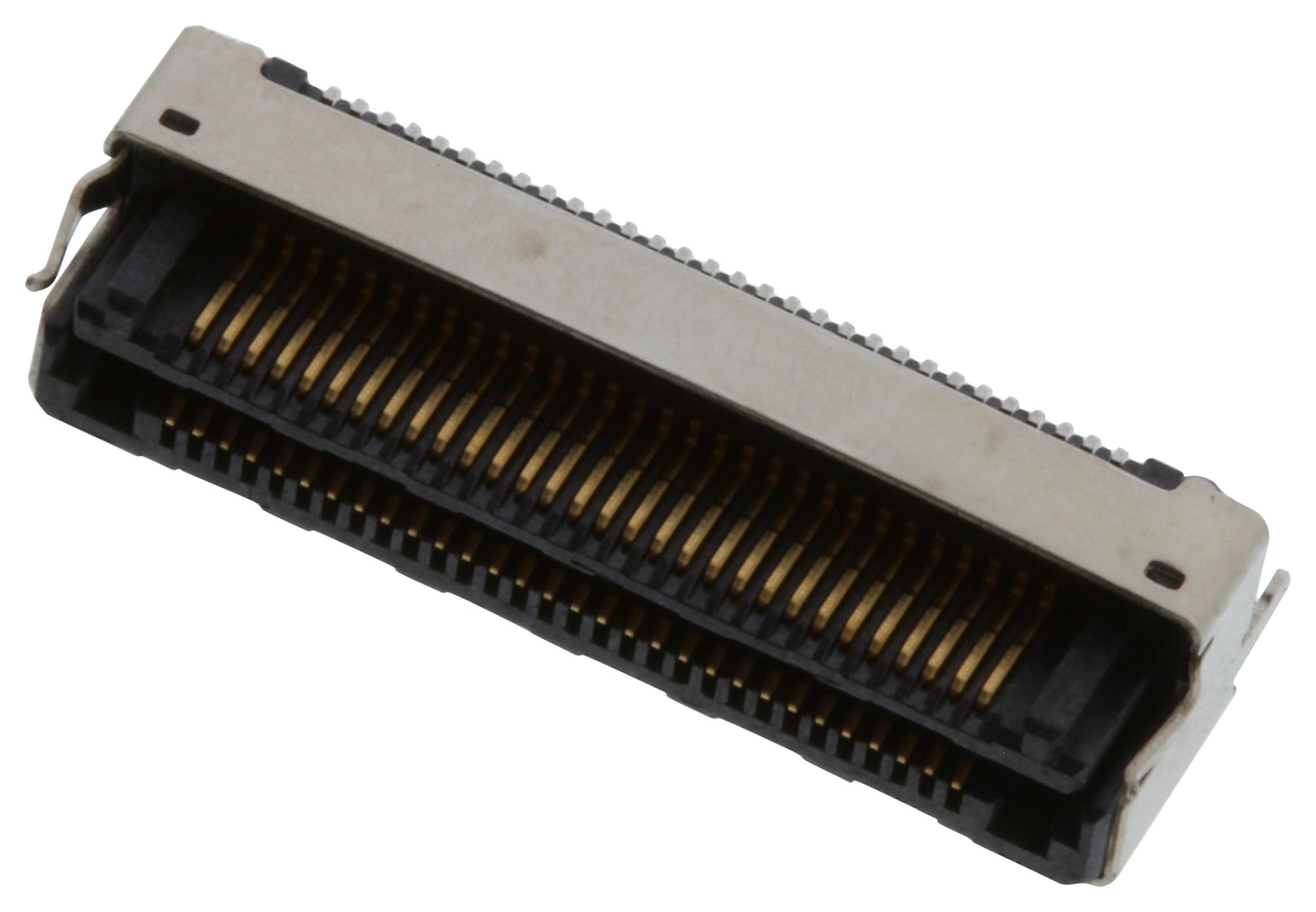

SAMTEC LSHM130040LDVASTR Hermaphroditic Connector
The LSHM-DV Series High-Speed Hermaphroditic Strip Connectors are designed for high-density and high-speed applications, featuring a Liquid Crystal Polymer insulator for reduced costs and superior electrical performance. Constructed with Phosphor Bronze contacts, they offer a current rating of 2.0A per pin with Au or Sn over Ni plating, operational from -55°C to +125°C, and RoHS compliance. The connectors support board stacking and vertical mounting, ensuring reliable, space-efficient connections in demanding electronic systems.
SAMTEC LSHM130040LDVASTR Hermaphroditic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50 p" or 1.27 μm Ni layer)
- Current Rating: 2.0A per pin (adjacent pins powered)
- Operating Range: -55°C to +125°C
- RoHS Compliant: Yes
- Stack Height: Supports 3.0 mm to 12.0 mm
- Lead-Free Solderable: Yes
- Board Stacking: Supports multiple connectors per board
- Maximum Mated Height: 15.0 mm (varies by style)
Buy the Samtec Series LSHM Hermaphroditic Connector: LSHM130040LDVASTR
Order the Samtec LSHM130040LDVASTR hermaphroditic connector online today and experience exceptional high-speed data transfer and reliable stacking in your electronic designs. Designed with a liquid crystal polymer insulator, phosphor bronze contacts, and RoHS compliance, this connector ensures performance from -55°C to +125°C. Its compact size and multiple mounting options make it ideal for dense, space-conscious systems. Built for durability and precision, this connector offers hassle-free installation and excellent electrical connectivity, making it a perfect choice for advanced electronic projects.
Get Samtec LSHM130040LDVASTR today—built for high-speed and space-efficient electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM130040LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM130040LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM130040LDVASTR?
You can download the LSHM130040LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM130040LDVASTR?
SAMTEC
