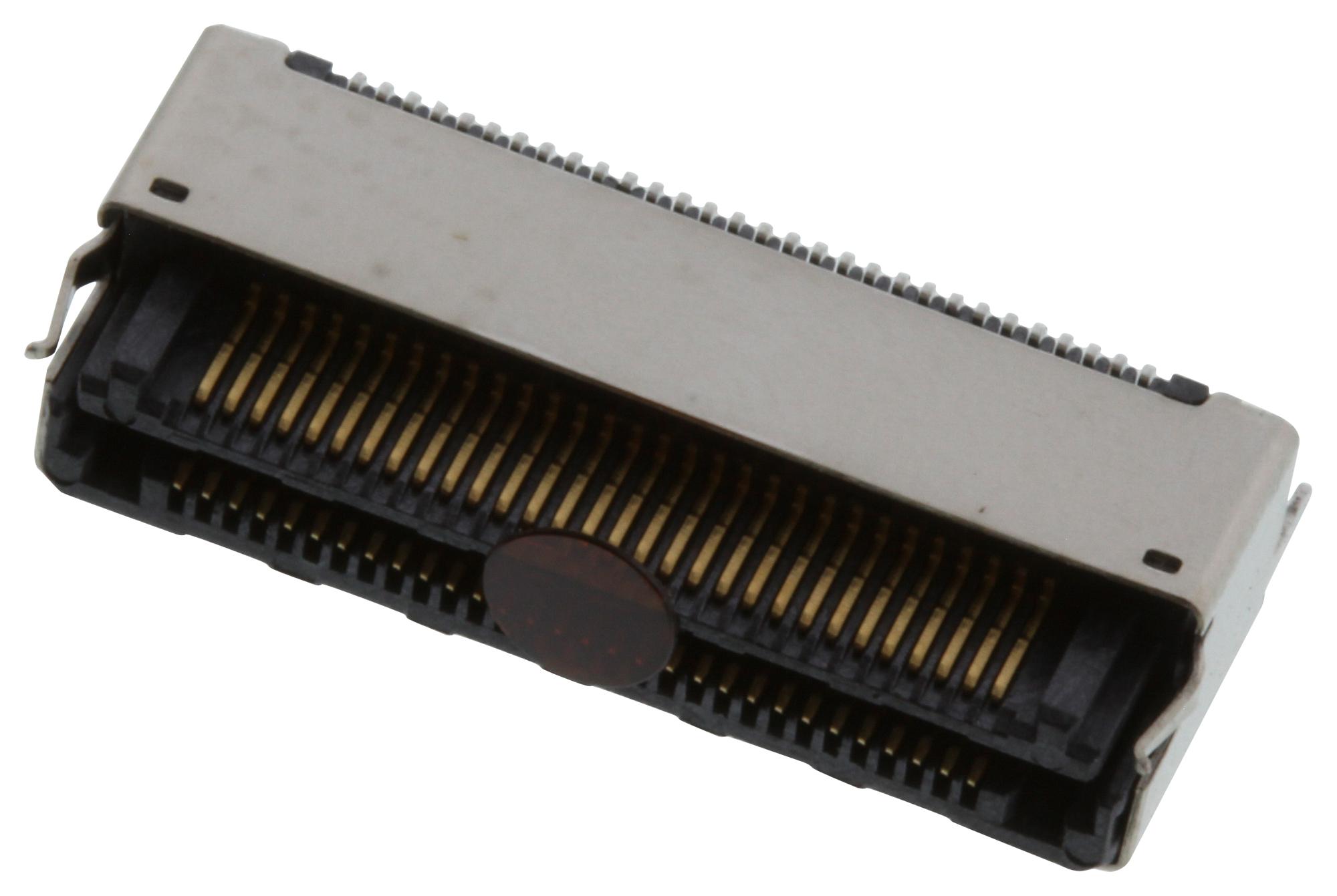

SAMTEC LSHM130060FDVASKTR High-Speed Board Connector
The LSHM-DV Series is a high-speed, high-density board mate connector designed for reliable PCB connections in demanding electronic applications. Crafted with black liquid crystal polymer insulation and phosphor bronze contact material, it features gold or tin over nickel plating for optimal performance. Capable of handling 2.0A per pin within a temperature range of -55°C to +125°C, this RoHS-compliant connector offers flexible stacking options and lead-free solderability, making it ideal for complex, space-constrained systems requiring durable, high-throughput performance.
SAMTEC LSHM130060FDVASKTR High-Speed Board Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 μm) Ni
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Insulator Material: Black Liquid Crystal Polymer
- Mated Height: 5 mm, various stacking options available
- Board Stacking: Multiple connectors per board supported
- Lead-Free Solderable: Yes
- Maximum contact pitch: 0.25 mm, 0.10 mm max coplanarity
- Design includes audible click when mated and shrouded contact protection
- Suitable for high-density and high-speed applications with reliable connection integrity
- Processing conditions include compatibility with lead-free soldering and SMT mounting
Buy the Samtec Series LSHM Series High-Speed Connector: LSHM130060FDVASKTR
Secure your electronic systems with the Samtec Series LSHM130060FDVASKTR high-speed connector. Designed for durability and precise connectivity, this connector features liquid crystal polymer insulation and gold or tin plating for excellent performance. Its compact stack height and compatibility with lead-free soldering make it suitable for space-constrained, high-density applications. Whether for PCB assembly, complex electronic modules, or high-speed data transmission, purchase this reliable connector online today and strengthen your project’s performance and longevity with trusted quality.
Order your Samtec Series LSHM130060FDVASKTR today and ensure your electronic project benefits from high-density, reliable PCB connectivity with advanced features.
Frequently Asked Questions
Where can I buy SAMTEC LSHM130060FDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM130060FDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM130060FDVASKTR?
You can download the LSHM130060FDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM130060FDVASKTR?
SAMTEC
