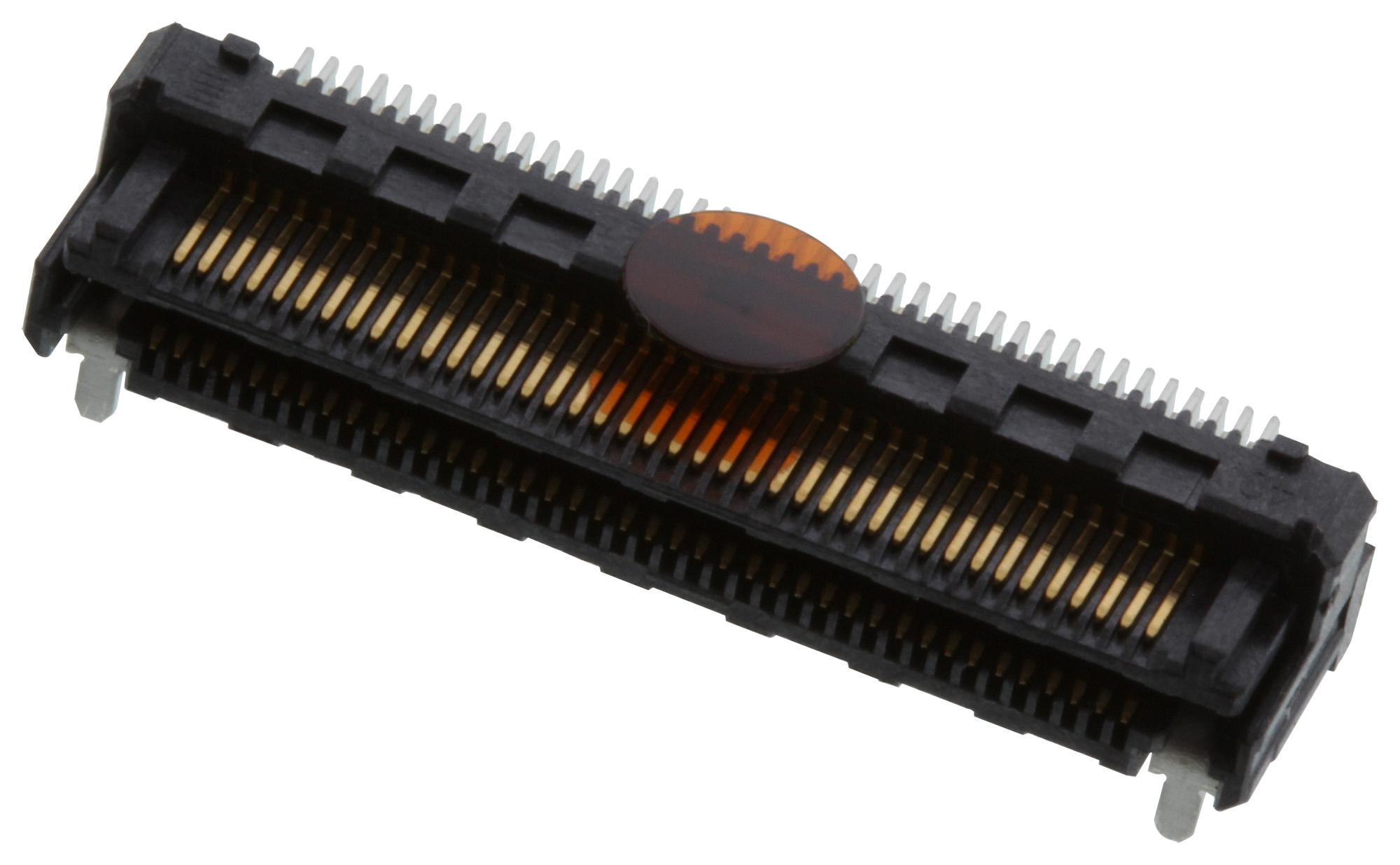

SAMTEC LSHM14001LDHANKTR Fine Pitch Connector
The Razor series is a high-density, fine pitch self-mating connector system ideal for compact electronic assemblies. Available in multiple stack heights from 5.00 mm to 12.00 mm, it features 0.50 mm, 0.635 mm, or 0.80 mm pitches, providing options for various design needs. The connectors include features like an audible click for mating confirmation, shield and lubricated options, and a high mating force of 4-6x greater than typical micro pitch connectors. Designed for durability and reliability, these connectors are suitable for demanding industrial and electronic applications.
SAMTEC LSHM14001LDHANKTR Fine Pitch Connector Specifications:
- Pitch: 0.50 mm, 0.635 mm, 0.80 mm
- Stack Heights: 5.00 mm to 12.00 mm
- Current Rating: LSHM 2.0 A per pin, LSS 1.7 A per pin, LSEM 1.8 A per pin
- Insulator Material: Black LCP
- Operating Temperature Range: -55°C to +125°C
- Coplanarity: Yes
- Lead-Free: Yes
- Durability Features: Audible click, shield and lubricated options
- Connector Style: Self-mating, parallel, perpendicular, coplanar systems
- Pins: Various pin counts (e.g., 10, 20, 40)
- Tail Lengths: 3.50 mm, 4.70 mm, 5.00 mm, 6.50 mm, etc.
- Packaging: Tape & Reel option, full reel availability
- Plating Options: Matte Tin, Gold flash
- Compatibility: Multiple mating configurations for industrial applications
Buy the Razor 14001LDHANKTR – Reliable Fine Pitch Connector for Industrial Applications
Order the Razor fine pitch connector series online today for dependable connections in compact electronic designs. These connectors offer multiple stack heights, 0.50 mm pitch, shield and lubricated options, and are designed for durability and ease of use. Perfect for demanding industrial applications, they provide high mating forces for secure connections. Experience fast processing, reliable mating, and flexible configurations with our online purchase. Don’t miss out on a high-quality, versatile connector solution that ensures optimal performance in your electronic projects.
Buy Samtec Razor 14001LDHANKTR now and experience unmatched reliability and high-density performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC LSHM14001LDHANKTR?
You can click on the BUY or RFQ button to purchase LSHM14001LDHANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM14001LDHANKTR?
You can download the LSHM14001LDHANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM14001LDHANKTR?
SAMTEC
