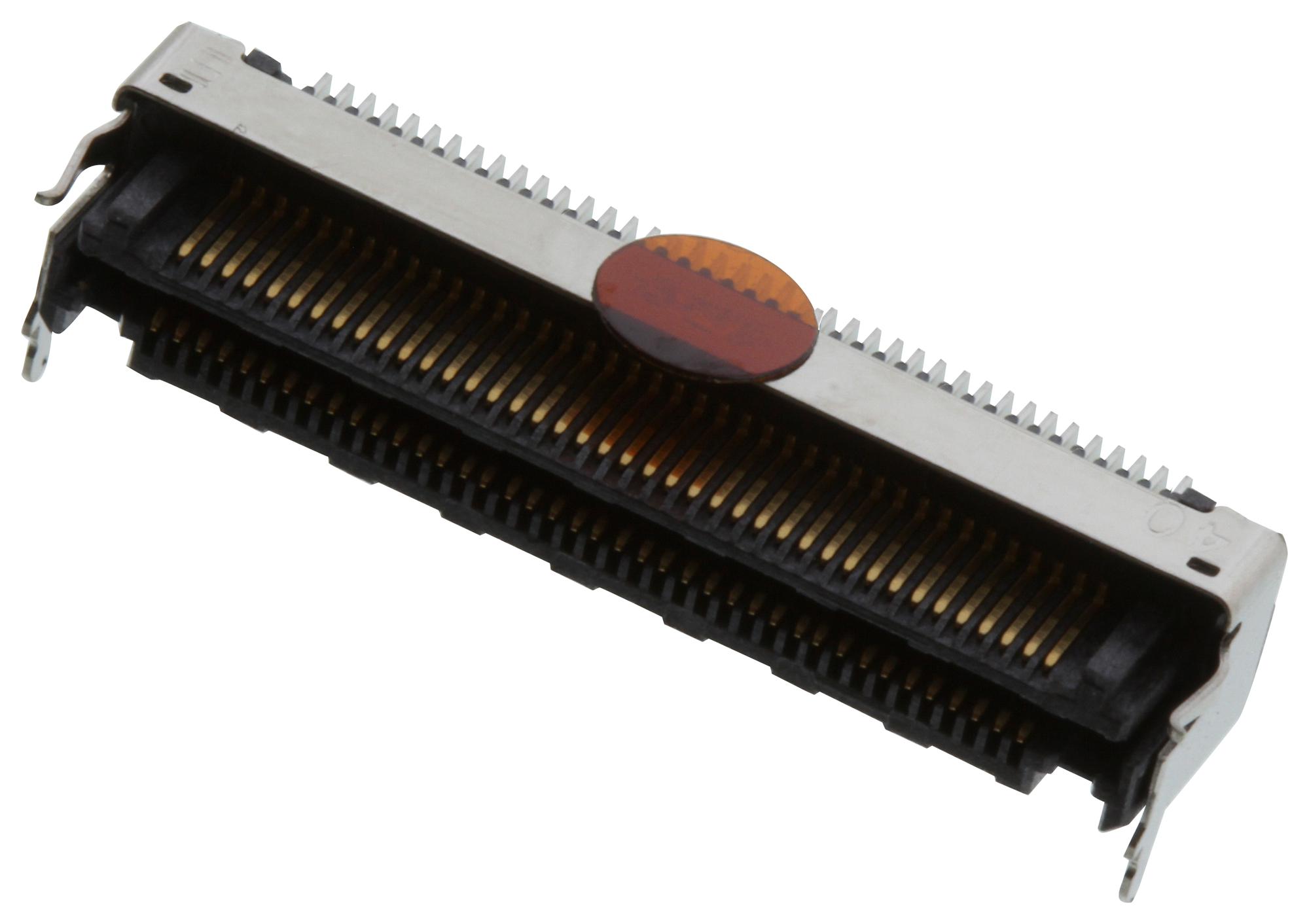

SAMTEC LSHM14001LDHASKTR Self Mating Connectors
The Razor Series Self Mating Connectors feature a 0.50 mm pitch, multiple stack height options from 5.00 mm to 12.00 mm, and a slim body design with up to 40 positions. These connectors offer excellent coplanarity, an audible click when mated, and optional shielding and lubrication. Suitable for high-density applications, they provide reliable mating with forces 4-6 times greater than typical micro pitch connectors. Ideal for compact, high-performance electronic assemblies requiring precise, secure connections in various industry sectors.
SAMTEC LSHM14001LDHASKTR Self Mating Connectors Specifications:
- Pitch: 0.50 mm (0.0197 inches)
- Stack heights: 5.00 mm to 12.00 mm
- Number of positions: up to 40
- Insulator: Black LCP, flame rated UL 94V-0
- Operating temperature: -55°C to +125°C
- Current per pin: LSHM 2.0 A, LSEM 1.8 A, LSS 1.7 A
- Material: Matte Tin on contact, Polyimide film, Gold flash on contact (optional)
- Mating force: 4-6x greater than typical micro connectors
- Mating and unmating: Audible click
- Features: Self-mating, coplanar, shield option, lubricated option
- Packaged: Tape & Reel, via specified reel sizes
Buy the Samtec Series Razor: High-Density Self Mating Connectors LSHM14001LDHASKTR
Purchase the Samtec Series Razor high-density self-mating connectors online today. Featuring 0.50 mm pitch, multiple stack heights, and optional shielding, these connectors are perfect for compact electronic designs requiring reliable, high-force mating. Designed for superior coplanarity and durability, they include features like audible click and optional lubrication. Available in tape and reel packaging, these connectors streamline assembly and inventory management, making them ideal for demanding industrial, medical, and consumer electronics applications. Order now for fast delivery and quality assurance.
Order your Samtec Series Razor LSHM14001LDHASKTR high-density micro connectors today and ensure secure, reliable electronic connections for your projects.
Frequently Asked Questions
Where can I buy SAMTEC LSHM14001LDHASKTR?
You can click on the BUY or RFQ button to purchase LSHM14001LDHASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM14001LDHASKTR?
You can download the LSHM14001LDHASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM14001LDHASKTR?
SAMTEC
