SAMTEC LSHM14001LRHANKTR High-Performance Board Connectors
The LSHM series connectors are high-reliability, RoHS compliant board-level electrometric connectors featuring liquid crystal polymer insulators and phosphor bronze contacts with gold or tin plating. Designed for rugged applications, they offer high retention force, audible click mating confirmation, and support for coplanar and perpendicular mounting configurations. Suitable for high-current, high-temperature environments, they can be utilized in SMT applications with coplanarity tolerances of 0.10 mm. Various lengths, styles, and optional shielding enhance versatility for complex electronic assemblies.
SAMTEC LSHM14001LRHANKTR High-Performance Board Connectors Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ" (1.27 μm) Ni
- Current Rating: 4.9 per pin (2 adjacent pins powered)
- Operating Temperature Range: -55 °C to +125 °C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm maximum
- Board Stacking: For multiple connectors per board, contact manufacturer
- Application: Suitable for coplanar and perpendicular high-retention, ruggedized connections
- Mating Confirmation: Audible click when engaged
- Design Variations: Standard or reverse right-angle options, vertical available
- Optional Shielding and Cable Mates Available
- Lengths and styles: Non-standard options available upon request

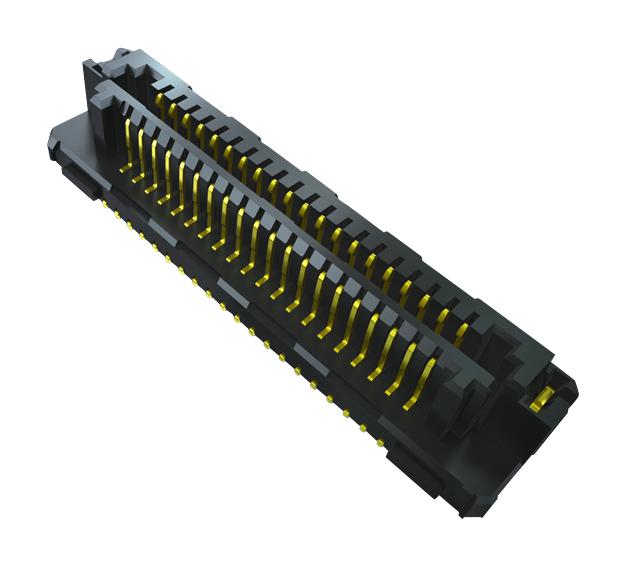

Buy the Samtec LSHM150-01-L-DH-A-S-K-TR – Reliable High-Performance Board Connectors for Industrial Applications
Purchase the Samtec LSHM150-01-L-DH-A-S-K-TR online today—engineered for industrial-grade reliability, offering excellent contact stability, high current capacity, and thermal stability. These ruggedized connectors feature liquid crystal polymer insulators and phosphor bronze contacts with gold or tin plating, suitable for high-temperature environments. Designed for both coplanar and perpendicular mounting, they support multiple connector stacking, provide audible mating confirmation, and adhere to RoHS standards. Enhance your electronic assemblies with these versatile, high-reliability connectors for demanding industrial and military applications.
Get Samtec LSHM150-01-L-DH-A-S-K-TR today—built for precision, high durability, and versatile mounting configurations in demanding electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC LSHM14001LRHANKTR?
You can click on the BUY or RFQ button to purchase LSHM14001LRHANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM14001LRHANKTR?
You can download the LSHM14001LRHANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM14001LRHANKTR?
SAMTEC
