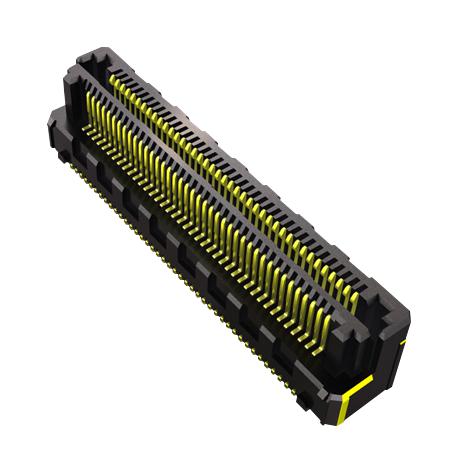

SAMTEC LSHM140025LDVASKTR High-Density PCB Connector
The LSHM-DV series are high-speed, high-density connectors designed for reliable PCB mating and stacking applications. Made with durable phosphor bronze contacts, they feature gold or tin plating over nickel for excellent corrosion resistance. These connectors support currents up to 2.0A per pin, operate within a temperature range of -55°C to +125°C, and comply with RoHS standards. Suitable for high-density systems, the series offers optional shrouded mated configurations, audible click assurance, and are compatible with lead-free soldering for environmentally friendly assembly. They are ideal for complex electronic systems requiring secure, compact connections.
SAMTEC LSHM140025LDVASKTR High-Density PCB Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 um) Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Insulator Material: Black Liquid Crystal Polymer
- Mated Height: Varies with option, typical 3.0 mm - 12.0 mm
- Lead-Free Solderable: Yes
- Board Stacking Options: 2 or more connectors per board
- Certifications: RoHS compliant
- Rated based on Samtec reference channel
- Processing conditions compatible with lead-free soldering
- Physical dimensions: Length varies, tail length approximately 0.10 mm to 0.472 inch depending on style
- Design includes high retention, audible click, and shrouded options
- Suitable for high-speed, high-density electronic systems
Buy the Samtec LSHM140025LDVASKTR – Reliable High-Density Connectors for Industrial Applications
Purchase the Samtec high-density PCB connector LSHM140025LDVASKTR today online to benefit from reliable, high-performance connections tailored for demanding electronic systems. Designed with durable materials like phosphor bronze contacts and gold or tin plating over nickel, these connectors support up to 2.0A per pin and operate within a broad temperature range from -55°C to +125°C. The RoHS-compliant design ensures environmentally friendly assembly. With features like high retention, audible clicks, and optional shrouded configurations, they provide secure, space-efficient connections perfect for industrial electronics and complex systems.
Order your Samtec Series LSHM140025LDVASKTR today and give your electronic projects the dependable quality they deserve, whether for high-density PCB applications or secure stacking configurations.
Frequently Asked Questions
Where can I buy SAMTEC LSHM140025LDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM140025LDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM140025LDVASKTR?
You can download the LSHM140025LDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM140025LDVASKTR?
SAMTEC
