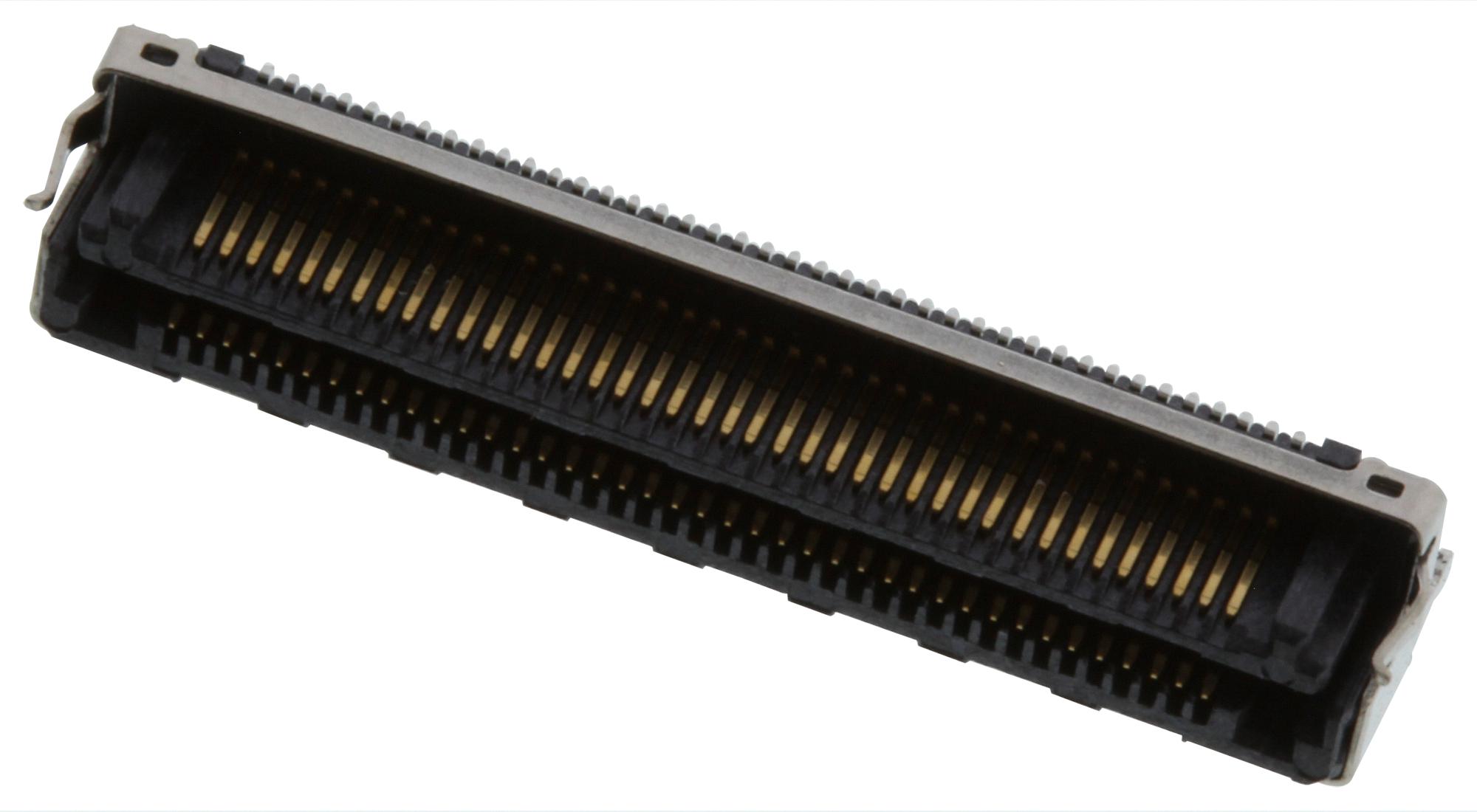

SAMTEC LSHM140025LDVASTR High-Density Connector
The LSHM series high-density, high-speed connector features a liquid crystal polymer insulator, gold or tin plating over nickel, and a low current rating of 2.0A per pin. It supports operating temperatures from -55°C to +125°C and is RoHS compliant, ideal for board stacking in space-constrained applications. Its ruggedized design, audible click when mated, and specific stack height options make it suitable for high-reliability, multi-connector systems in industrial electronics, consumer electronics, and automation equipment.
SAMTEC LSHM140025LDVASTR High-Density Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Stack Height Options: 3.0 mm, 4.0 mm, 6.0 mm
- Solderability: Lead-Free Solderable
- Contact Max Pitch: 0.25 mm
- Coplanarity: Max 0.10 mm
- Audible Click: Yes
- Board Stack Compatibility: Multiple connectors for layered PCBs
- Processing Conditions: Subject to change, must meet manufacturer specifications
- Certification: See samtec.com for quality standards
Buy the Samtec LSHM140025LDV – Reliable High-Density Connector for Industrial Applications
Order the high-density connector today and enhance your electronic system with a durable, space-efficient solution. Featuring Liquid Crystal Polymer insulator, gold or tin plating, and a ruggedized design, this connector ensures reliable connectivity in demanding industrial, automation, or consumer applications. Its excellent temperature range from -55°C to +125°C, RoHS compliance, and audible click mating indicator make it ideal for precise, high-speed connections requiring secure, stable, and repeatable performance. Buy online now to improve your projects’ reliability and efficiency.
Buy Samtec LSHM140025LDV now and experience unmatched reliability and performance in high-speed, high-density board stacking solutions.
Frequently Asked Questions
Where can I buy SAMTEC LSHM140025LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM140025LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM140025LDVASTR?
You can download the LSHM140025LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM140025LDVASTR?
SAMTEC
