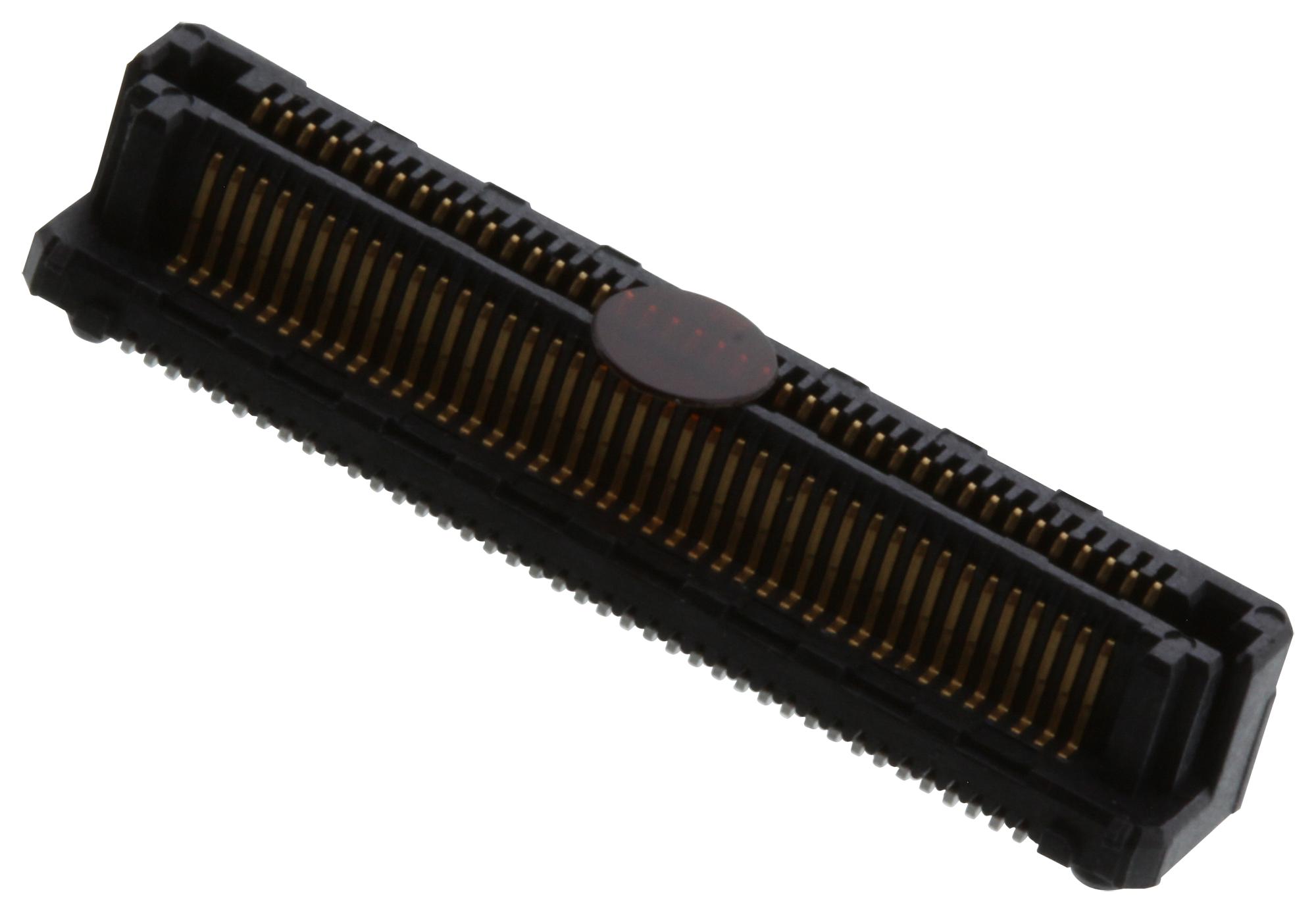

SAMTEC LSHM140030LDVANKTR Hermaphroditic Connector
The LSHM Series Hermaphroditic Strip Connectors are designed for high-speed, high-density applications with minimal space requirements. Made from black liquid crystal polymer and phosphor bronze with gold or tin over nickel plating, these connectors offer a current rating of 2.0A per pin and operate from -55°C to +125°C. They feature durable, shrouded, and shrouded options with reliable audible click mating, RoHS compliance, and support for multiple stacking configurations, making them ideal for compact electronic systems requiring robust, high-performance connections.
SAMTEC LSHM140030LDVANKTR Hermaphroditic Connector Specifications:
- Material: Black Liquid Crystal Polymer, Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 um) Ni
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Mated Height: 3.0 mm (0.12 inches), options up to 12.00 mm (0.472 inches)
- Lead-Free Solderable: Yes
- Board Stacking: Supports multiple connectors per board
- Contact Material: Phosphor Bronze
- Insulator Material: Liquid Crystal Polymer
- RoHS and compliant with industry standards
- Reliable audible click and high retention for secure mating
- Suitable for high-speed/data transfer applications
- Processing conditions: Compatible with standard SMT processes
- Design supports slim, high-density configurations
Buy the Samtec Series LSHM Hermaphroditic Strip Connector: LSHM140030LDVANKTR
Discover the high-performance, high-density hermaphroditic connector from Samtec’s LSHM Series designed for demanding electronic applications. With a robust construction of liquid crystal polymer insulators and phosphor bronze contacts, it provides a current rating of 2.0A per pin and operates reliably across a wide temperature range from -55°C to +125°C. Its gold or tin over nickel plating ensures excellent electrical conductivity and corrosion resistance. Easy to mount with support for multiple stacking and mating configurations, this connector offers durable, secure, and space-efficient solutions for high-speed digital and data transfer systems. Purchase online now for dependable performance and seamless integration into your circuit boards.
Order your Samtec Series LSHM140030LDVANKTR high-density hermaphroditic strip connector today and ensure your electronic projects benefit from reliable, space-saving high-speed connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM140030LDVANKTR?
You can click on the BUY or RFQ button to purchase LSHM140030LDVANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM140030LDVANKTR?
You can download the LSHM140030LDVANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM140030LDVANKTR?
SAMTEC
