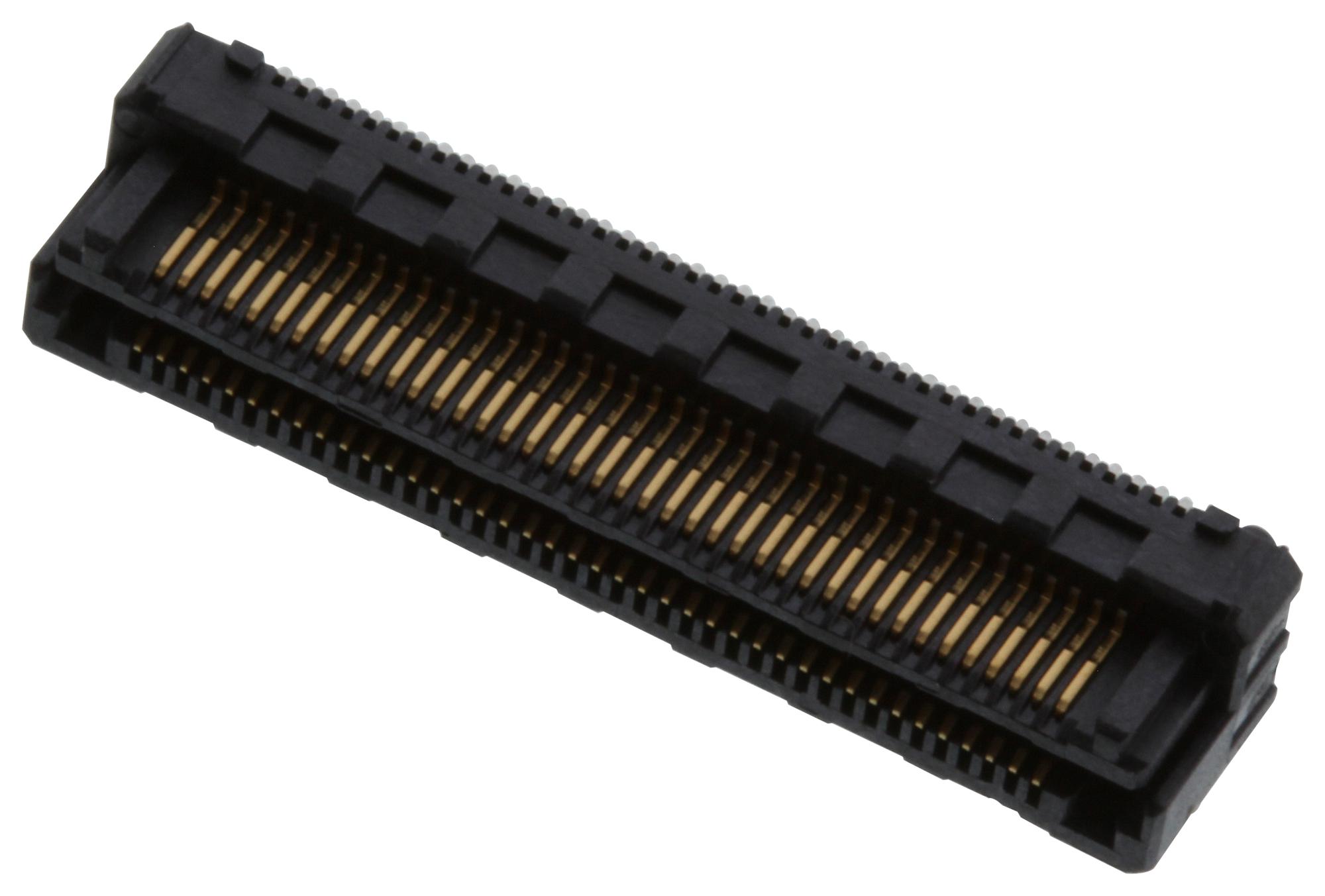

SAMTEC LSHM140040LDVANTR Board-to-Board Connector
The LSHM series high-density connector offers reliable board-to-board connections with a slim stack height of 5 mm, suitable for compact electronic assemblies. Constructed with durable phosphor bronze contacts plated with gold or tin over nickel, it supports currents up to 2.0A per pin and operates effectively within temperature ranges from -55°C to +125°C. Designed for high-speed signals and low-cost applications, this connector features a liquid crystal polymer insulator, shrouded mating, audible click for secure connection, and RoHS compliance. Suitable for stacking multiple boards, it ensures flexibility and optimal electrical performance in demanding environments.
SAMTEC LSHM140040LDVANTR Board-to-Board Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 um) Ni
- Operating Temp Range: -55 °C to +125 °C
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Insulator Material: Black Liquid Crystal Polymer
- Stack Height: 5 mm mated height
- RoHS Compliant: Yes
- Mated Height options: 3.0 mm, 4.0 mm, 6.0 mm
- Lead-Free Solderable: Yes
- Board Stacking: Supports multiple connectors per board
- Connection Style: Shrouded, audible click
- Dimensions: varies by style, typical contact tail length 1.00 mm, various lengths for different models
- Processing: RoHS compliant, suitable for SMT, high coplanarity, designed for high-speed applications
Buy the Buy Samtec LSHM Series Part Number LSHM140040LDVANTR Online
Purchase the Samtec LSHM140040LDVANTR connector online today to enhance your electronic assembly with a high-density, reliable, and RoHS-compliant connection solution. Designed with high-speed performance in mind, this connector supports multiple stacking options and features durable gold or tin plating for optimal electrical conductivity. Its slim profile of just 5 mm allows for compact design integration, while the black Liquid Crystal Polymer insulator ensures excellent thermal stability. Perfect for demanding environments, order now for quick delivery and ensure your project’s success.
Order your Samtec LSHM140040LDVANTR connector today and ensure reliable, high-speed board-to-board connections for your advanced electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC LSHM140040LDVANTR?
You can click on the BUY or RFQ button to purchase LSHM140040LDVANTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM140040LDVANTR?
You can download the LSHM140040LDVANTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM140040LDVANTR?
SAMTEC
