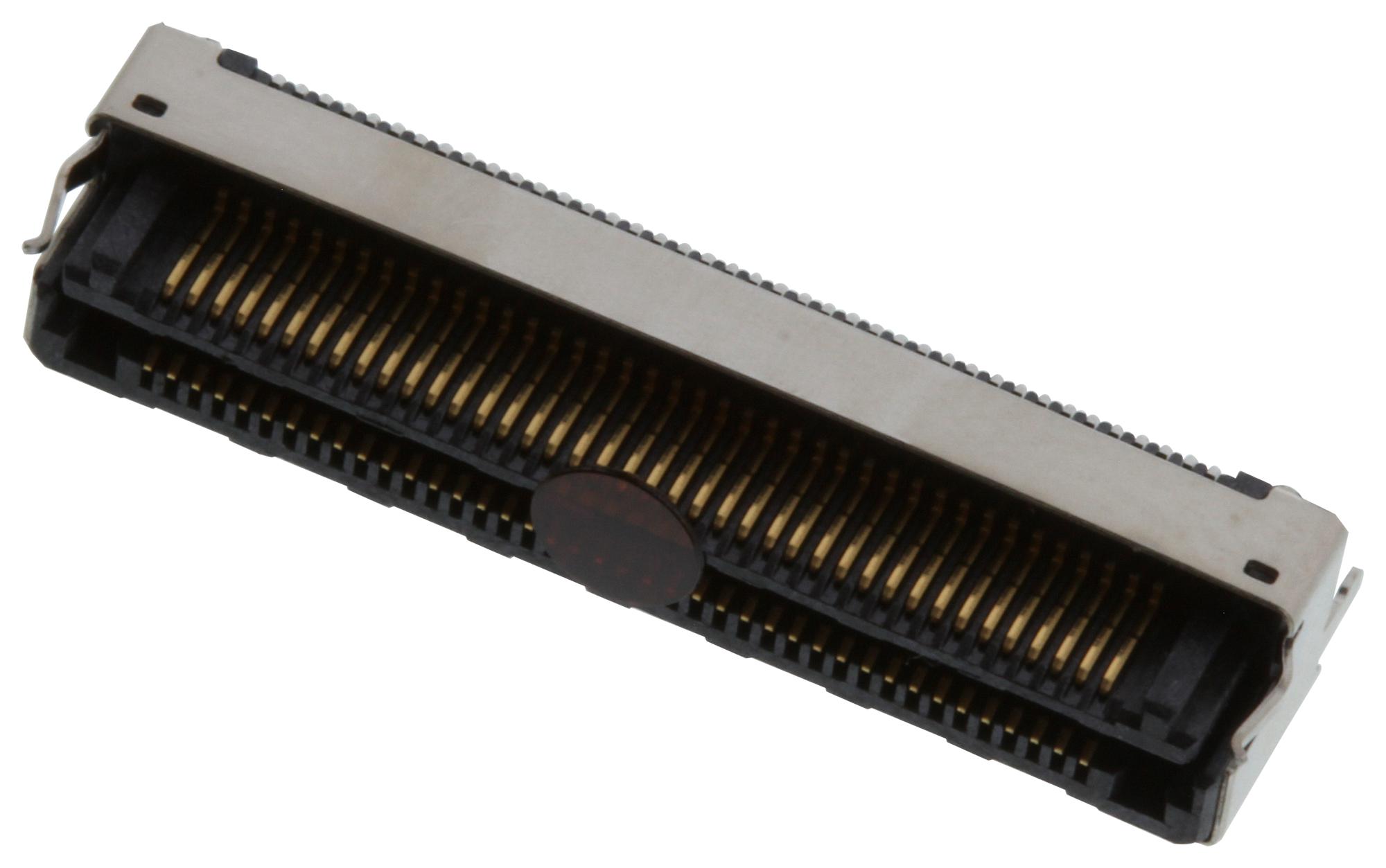

SAMTEC LSHM140040LDVASKTR High-Speed PCB Connector
The LSHM-DV series high-speed, high-density board mates feature liquid crystal polymer insulators with phosphor bronze contact material, gold or tin plating, and a 2.0A current rating per pin. Designed for PCB stacking and SMB applications, they operate from -55°C to +125°C and are RoHS compliant. Suitable for reliable, durable connections in high-performance electronics, featuring an audible click, shielded contact, and compatibility with lead-free soldering. They support multiple connector configurations with high retention and ruggedized construction for demanding industrial use.
SAMTEC LSHM140040LDVASKTR High-Speed PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ-inch Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Stacking Height: 5 mm mated
- Board Compatibility: Stacking for two or more connectors
- Contact Finish: Gold or Tin
- Connector Style: Blade & Beam with shrouded design
- Retention: High retention with audible click
- Durability: Ruggedized design suitable for industrial environments
- Custom Lengths & Styles: Non-standard options available
Buy the Samtec LSHM140040LDVASKTR – Reliable High-Speed PCB Connectors for Industrial Applications
Get your Samtec LSHM140040LDVASKTR high-speed PCB connector online today and experience reliable, high-performance connections for industrial applications. Designed with liquid crystal polymer insulators and phosphor bronze contacts, these connectors ensure durability, high current capacity, and temperature resistance from -55°C to +125°C. The RoHS-compliant design supports lead-free soldering, making installation easier. Suitable for PCB stacking and high-density configurations, this rugged connector features an audible click for secure mating and high retention. Buy online now and improve your electronics assembly with trusted quality.
Order your Samtec Series LSHM140040LDVASKTR today and enhance your industrial electronics with dependable high-density connectors.
Frequently Asked Questions
Where can I buy SAMTEC LSHM140040LDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM140040LDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM140040LDVASKTR?
You can download the LSHM140040LDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM140040LDVASKTR?
SAMTEC
