SAMTEC LSHM140060LDVANKTR Hermaphroditic Edge Connector
The LSHM series features high-speed, high-density hermaphroditic edge connectors made from black liquid crystal polymer with phosphor bronze contact material, gold or tin plating, rated for 2.0A per pin. Suitable for PCB stacking and flexible board-to-board applications, these RoHS compliant connectors operate from -55°C to +125°C. They offer low-cost, lead-free soldering, and come with audible click for secure mating, designed for reliable performance in demanding electronic systems, with various stack heights and contact configurations available for versatile use.
SAMTEC LSHM140060LDVANKTR Hermaphroditic Edge Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" (1.27 um) Ni
- Current Rating: 2.0A per pin
- Operating Temperature Range: -55°C to +125°C
- Material: Black Liquid Crystal Polymer
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Stack Height Options: 3.0 mm, 4.0 mm, 6.0 mm, 8.0 mm, 10.0 mm, 12.0 mm
- Contact Pitch: 2.5 mm
- Design: Hermaphroditic, high-speed, high-density
- Mechanical: Audible click when mated, high retention contacts
- Environmental: RoHS compliant, suitable for demanding electronic environments

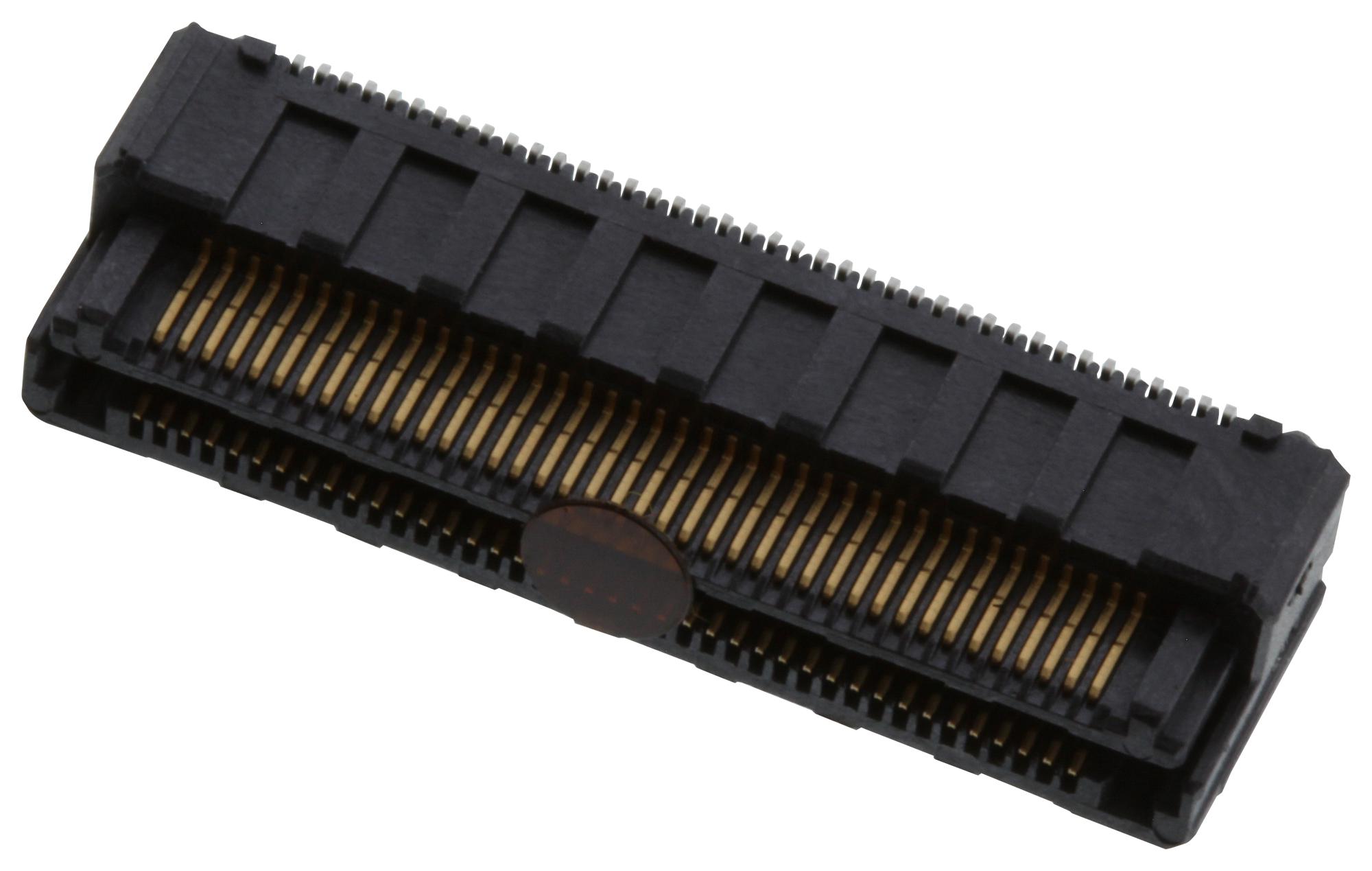

Buy the Buy Samtec LSHM Series Hermaphroditic Connectors Part Number LSHM140060LDVANKTR Online
Purchase the Samtec LSHM Series Hermaphroditic Edge Connector online today to enjoy dependable performance and flexible PCB stacking options. Designed for high-speed, high-density applications, this connector features gold or tin plating over phosphor bronze contacts rated for 2A per pin. Operating across -55°C to +125°C, it offers RoHS compliance and lead-free solderability, making it ideal for demanding electronic systems. Securely connect multiple boards with audible click mating and high retention contacts, ensuring consistent electrical performance in various industrial and consumer electronics projects.
Order your Samtec Series LSHM140060LDVANKTR high-density edge connector today and ensure reliable, secure electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC LSHM140060LDVANKTR?
You can click on the BUY or RFQ button to purchase LSHM140060LDVANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM140060LDVANKTR?
You can download the LSHM140060LDVANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM140060LDVANKTR?
SAMTEC
