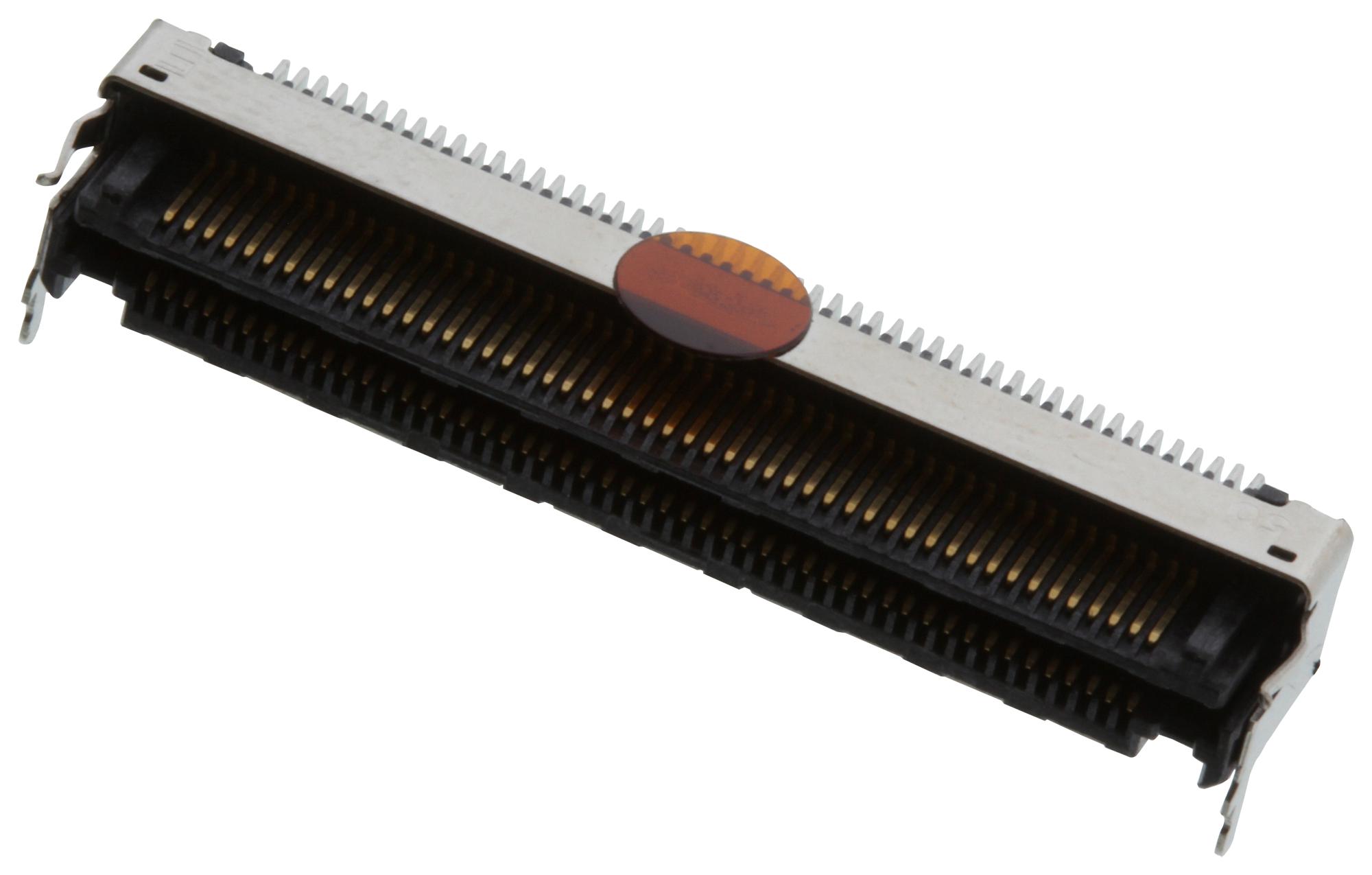

SAMTEC LSHM15001FDHASKTR High-density Micro Pitch Connector
The Razor series self-mating connectors offer a slim, high-density pitch of 0.50 mm with ten stack height options from 5.00 mm to 12.00 mm. Their features include an audible click when mated, enhanced mating and unmating forces, and optional shield and lubrication. Designed for reliable performance in compact electronic assemblies, these connectors support coplanar, parallel, and perpendicular system configurations. Made from black LCP insulating material, they are lead-free, operate between -55°C to +125°C, and have current ratings up to 2.0 A per pin, ensuring durability and versatility in high-performance applications.
SAMTEC LSHM15001FDHASKTR High-density Micro Pitch Connector Specifications:
- Pitch: 0.50 mm (0.0197")
- Stack height options: 5.00 mm to 12.00 mm
- Number of positions: varies, including 40 positions
- Insulator Material: Black LCP
- Operating Temperature Range: -55°C to +125°C
- Current Ratings: LSHM - 2.0 A per pin, LSS - 1.7 A per pin, LSEM - 1.8 A per pin
- Lead-Free: Yes
- Mating Force: 4-6x greater than typical micro pitch connectors
- Features: Audible click, shield option, lubricated option, coplanar, parallel, perpendicular configurations
- Contact Plating: Matte Tin or Gold Flash
- Reel & tape packaging: 138" DIA Reel, full reel options
- Temperature Rating: 221°F (105°C)
Buy the Buy Samtec Razor Series Self Mating Connectors Part Number LSHM15001FDHASKTR Online
Purchase the Samtec Razor series high-density micro pitch connectors online today. Designed for compact, reliable connections, these connectors feature 0.50 mm pitch with multiple stack height options from 5.00 mm to 12.00 mm. They include an audible click for secure mating, support coplanar and perpendicular configurations, and are made from durable lead-free black LCP. Rated up to 2.0 A per pin and operating across -55°C to +125°C, they are essential for high-performance electronic assemblies. Order now for fast delivery and quality assurance.
Order your Samtec Razor series LSHM15001FDHASKTR today and ensure reliable high-density connections with our versatile, shielded, and high-force micro pitch connectors.
Frequently Asked Questions
Where can I buy SAMTEC LSHM15001FDHASKTR?
You can click on the BUY or RFQ button to purchase LSHM15001FDHASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM15001FDHASKTR?
You can download the LSHM15001FDHASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM15001FDHASKTR?
SAMTEC
