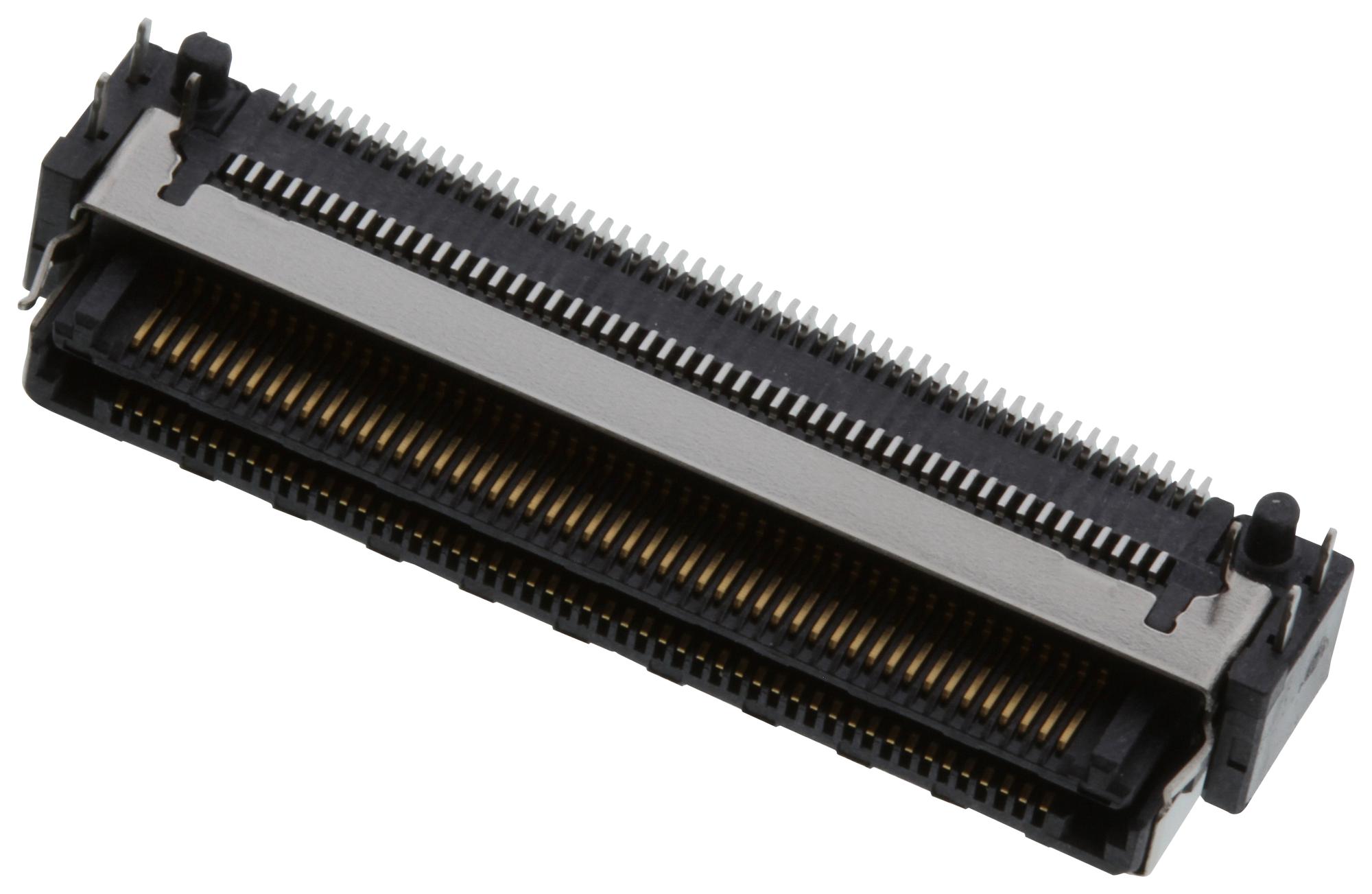

SAMTEC LSHM15001FRHASTR Fine Pitch Connector
The Razor high-density, fine pitch self-mating connectors are available in various stack heights from 5.00 mm to 12.00 mm, offering pitches of 0.50 mm, 0.635 mm, or 0.80 mm. These connectors feature an audible click when mated, with mating and unmating forces approximately 4-6 times higher than typical micro pitch connectors, ensuring secure connection. They include shield and lubricated options and support parallel, perpendicular, and coplanar systems. Designed for high performance in compact applications, they operate in temperature ranges from -55°C to +125°C and are lead-free compliant.
SAMTEC LSHM15001FRHASTR Fine Pitch Connector Specifications:
- Stack Heights: 5.00 mm to 12.00 mm
- Pitches: 0.50 mm, 0.635 mm, 0.80 mm
- Operating Temperature Range: -55°C to +125°C
- Current Per Pin: LSHM 2.0 A, LSEM 1.8 A, LSS 1.7 A
- Insulator Material: Black LCP
- Lead-Free: Yes
- Coplanarity: Yes
- Contact Plating: Matte Tin with optional Gold flash
- Contact Style: Right-angle, standard, reverse
- Number of Positions: Varies from 5 to 40+
- Shield and lubricated options available
- Tape & Reel packaging, reel diameter 0.138 inch
Buy the Samtec LSHM15001FRHASTR – Reliable Fine Pitch Connectors for Industrial Applications
Purchase the Samtec Fine Pitch Connector online today—designed for high-performance, secure micro connectors in compact electronic systems. With adjustable stack heights and pitches from 0.50 mm to 0.80 mm, these connectors feature an audible click for secure mating, support multiple system orientations, and include options like shielding and lubrication. Operating from -55°C to +125°C, they ensure reliable performance under harsh conditions. Ideal for high-density applications, order now for quick delivery.
Get Samtec LSHM15001FRHASTR today—built for precision, high-density connections, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC LSHM15001FRHASTR?
You can click on the BUY or RFQ button to purchase LSHM15001FRHASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM15001FRHASTR?
You can download the LSHM15001FRHASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM15001FRHASTR?
SAMTEC
