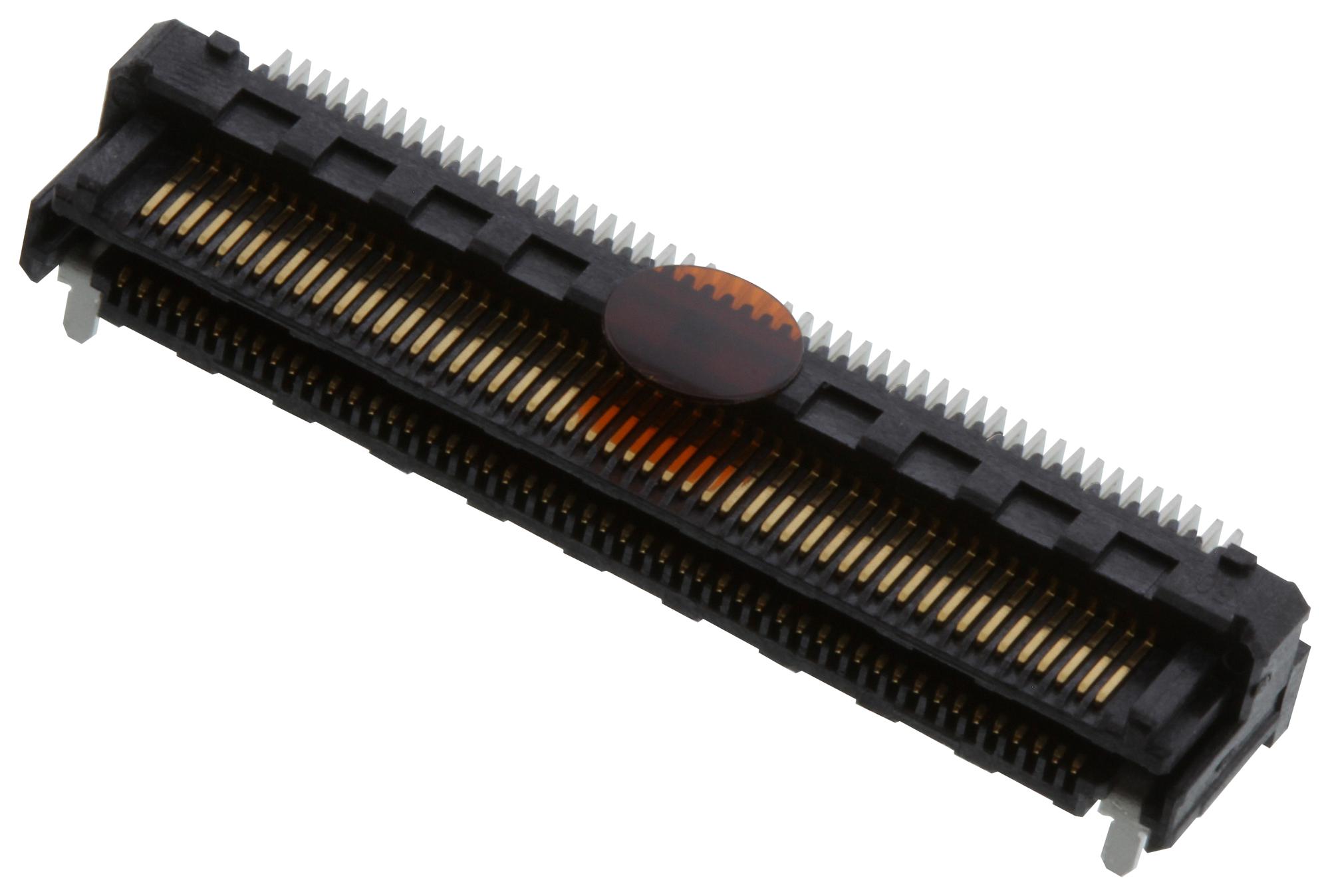

SAMTEC LSHM15001LDHANKTR High-Density Self Mating Connectors
The Razor Series Self Mating Connectors offer a compact, high-density solution with pitch options of 0.50 mm, 0.635 mm, and 0.80 mm. Featuring ten stack height options between 5.00 mm and 12.00 mm, these connectors are designed for durability and ease of mating with audible click confirmation. They support coplanar, perpendicular, and parallel configurations, include shield and lubricated options, and provide high current ratings of up to 2.0 A per pin. Ideal for PCB assemblies requiring reliable, space-saving interconnections in industrial and electronics applications.
SAMTEC LSHM15001LDHANKTR High-Density Self Mating Connectors Specifications:
- Pitch options: 0.50 mm, 0.635 mm, 0.80 mm
- Stack Height options: 5.00 mm to 12.00 mm with ten choices
- Current Ratings: LSHM: 2.0 A per pin, LSS: 1.7 A per pin, LSEM: 1.8 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insulator Material: Black LCP, lead-free
- Coplanarity: Yes
- Reel Packaging: Tape & Reel, 138" diameter reel
- Tail Plating: Matte Tin, gold flash available
- Contact Plating: Matte Tin or gold on contact
- Connector Style: Right-angle, side-entry, shield option available
Buy the Razor Series Self Mating Connectors: LSHM15001LDHANKTR
Purchase the Razor Series High-Density Self Mating Connectors LSHM15001LDHANKTR online today to ensure reliable connections in your electronics projects. These connectors feature 0.50 mm pitch options, multiple stack heights, and easy mating with audible click confirmation, supporting high current ratings up to 2.0 A per pin. Designed for durability and space efficiency, they include shield and lubricated options for enhanced performance. Ideal for PCB assemblies requiring compact, high-density interconnect solutions in industrial, automation, and electronic applications.
Get Razor Series Self Mating Connectors LSHM15001LDHANKTR today—built for precision, high-density interconnections, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC LSHM15001LDHANKTR?
You can click on the BUY or RFQ button to purchase LSHM15001LDHANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM15001LDHANKTR?
You can download the LSHM15001LDHANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM15001LDHANKTR?
SAMTEC
