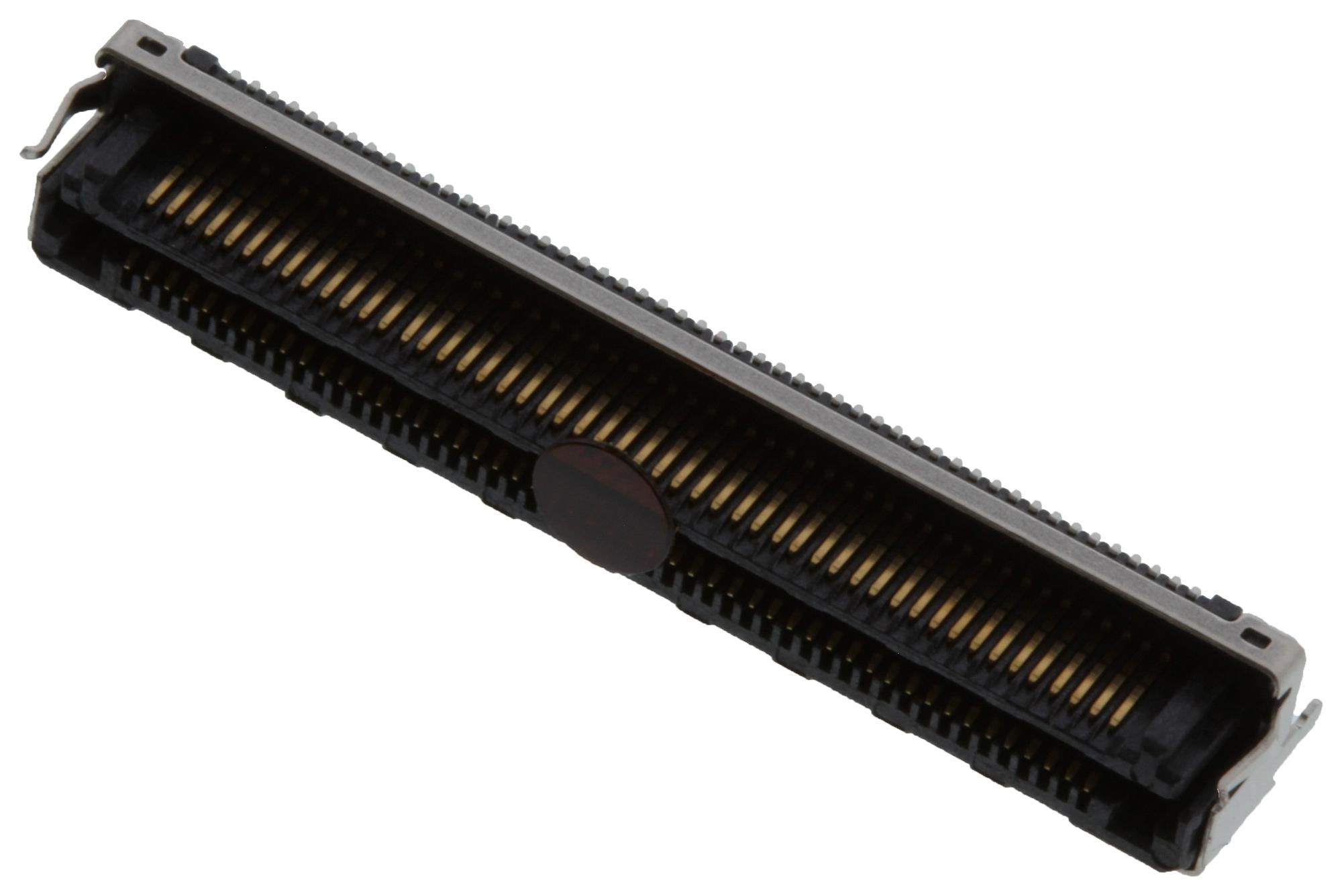

SAMTEC LSHM150025FDVASKTR High-Speed Interconnect
The LSHM series connector offers high-speed, high-density interconnect solutions suitable for PCB stacking and board mate shielding. Featuring liquid crystal polymer insulators and phosphor bronze contacts with gold or tin plating over nickel, it supports current ratings up to 2.0A per pin within a temperature range of -55°C to +125°C. Designed for SMT applications, it provides reliable mating with audible click feedback, high retention, and options for non-standard lengths. The connector ensures RoHS compliance and compatibility with multiple stacking configurations, ideal for compact, high-performance electronics.
SAMTEC LSHM150025FDVASKTR High-Speed Interconnect Specifications:
- Insulator Material: Liquid Crystal Polymer (Black)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50 μ" / 1.27 μm Ni)
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Mated Height: 3.0 mm, 4.0 mm, 6.0 mm options
- Lead-Free Solderable: Yes
- Board Stacking: Supports multiple connectors per board
- Stacking Lengths: 3.50 mm, 4.45 mm, 5.00 mm, 6.00 mm, 8.50 mm, 10.00 mm, 12.00 mm
- Reel Packaging: Yes
- Additional features: Audible click, high retention, shrouded mating, compatible with SMT processes
Buy the Samtec LSHM150-02.5-L-DV-A-N-K-TR – Reliable High-Speed Interconnect for Industrial Applications
Order the Samtec LSHM150-02.5-L-DV-A-N-K-TR connector online today and experience the benefits of high-speed, high-density PCB stacking. Designed with liquid crystal polymer insulators and gold or tin plating, it provides reliable, low-cost interconnect solutions suitable for demanding industrial applications. Supporting up to 2A per pin, this connector features a robust mating mechanism with an audible click, ensuring secure and repeatable connections. Ideal for compact electronics, it offers RoHS compliance, multiple stacking heights, and compatibility with SMT manufacturing processes, making it the perfect choice for quality-conscious technicians and engineers.
Get Samtec LSHM150-02.5-L-DV-A-N-K-TR today—built for precision, high-density stacking, and durable PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM150025FDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM150025FDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM150025FDVASKTR?
You can download the LSHM150025FDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM150025FDVASKTR?
SAMTEC
