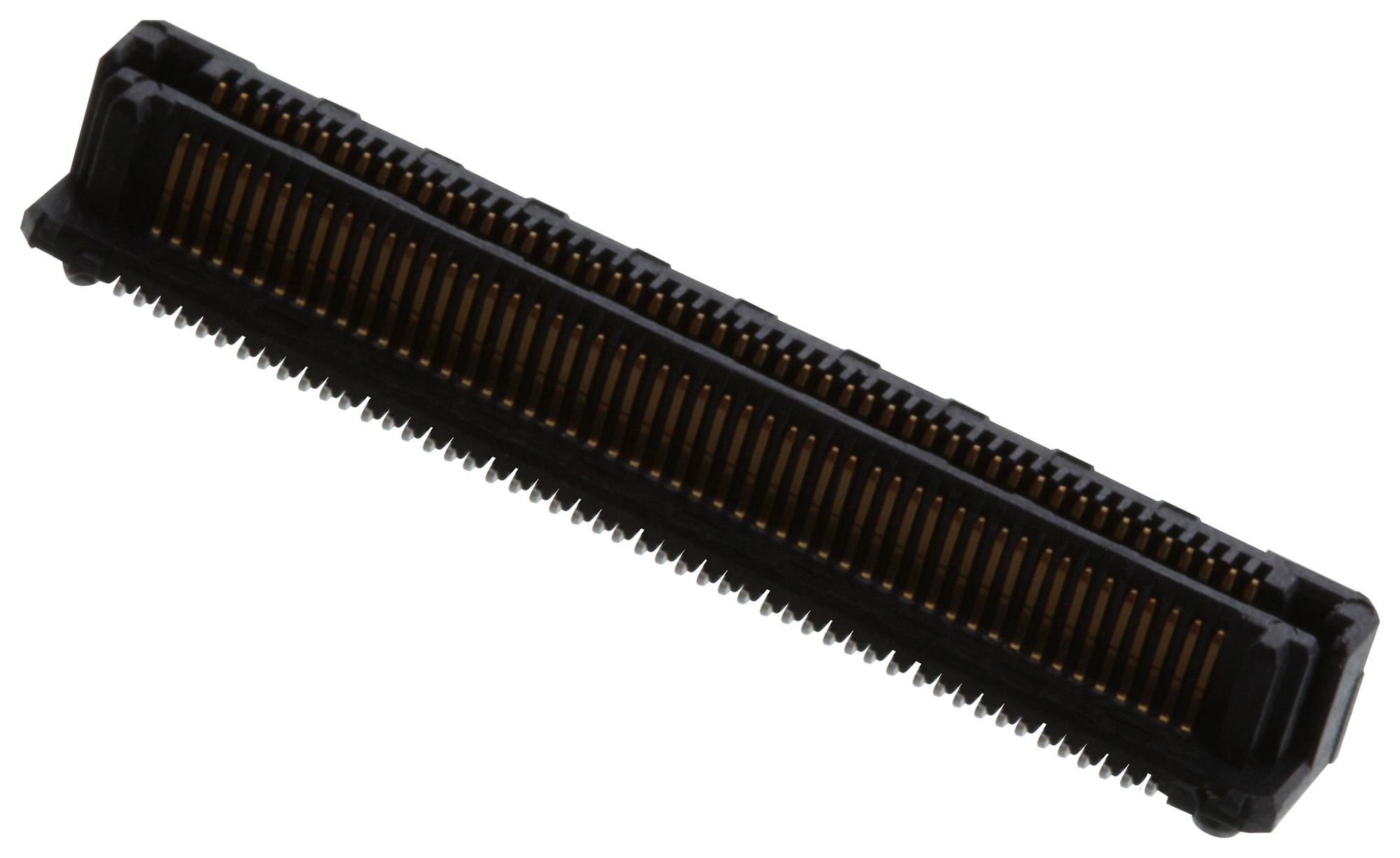

SAMTEC LSHM150025LDVANTR High-Speed Board Connector
The LSHM series are high-speed, high-density board mates designed for reliable signal and power connections in compact spaces. These connectors feature liquid crystal polymer insulators and phosphor bronze contacts with gold or tin plating over nickel, supporting current ratings up to 2.0A per pin. Operating across -55°C to +125°C, they offer RoHS compliance and compatibility with SMT lead coplanarity. Suitable for stacked applications, these connectors ensure robust connections with audible click feedback and optional shrouded designs for added retention and stability in demanding industrial environments.
SAMTEC LSHM150025LDVANTR High-Speed Board Connector Specifications:
- Material: Liquid Crystal Polymer insulator, Phosphor Bronze contact
- Plating: Au or Sn over 50 μ" (1.27 μm) Ni
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Mated Height: 3.0 mm to 10.00 mm
- Board Stacking: Compatible with multiple connector stacks
- Lead-Free Solderable: Yes
- Coplanarity: Max 0.10 mm (.004")
- Design: High-density, high-speed with optional shrouded versions
Buy the Samtec LSHM150025LDVANTR – Reliable High-Speed Connectors for Industrial Applications
Secure your industrial connections with the high-speed, high-density board mates designed for durability and precise signal transfer. Featuring liquid crystal polymer insulators, phosphor bronze contacts with gold or tin plating, and rated for 2.0A per pin, these connectors operate across -55°C to +125°C. They provide RoHS compliance and excellent coplanarity for SMT applications, supporting multiple stacked configurations. Invest in these reliable, cost-effective connectors today to ensure consistent performance in demanding environments and streamline your manufacturing process.
Buy Samtec LSHM150025LDVANTR now and experience unmatched reliability and high-density performance for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC LSHM150025LDVANTR?
You can click on the BUY or RFQ button to purchase LSHM150025LDVANTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM150025LDVANTR?
You can download the LSHM150025LDVANTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM150025LDVANTR?
SAMTEC
