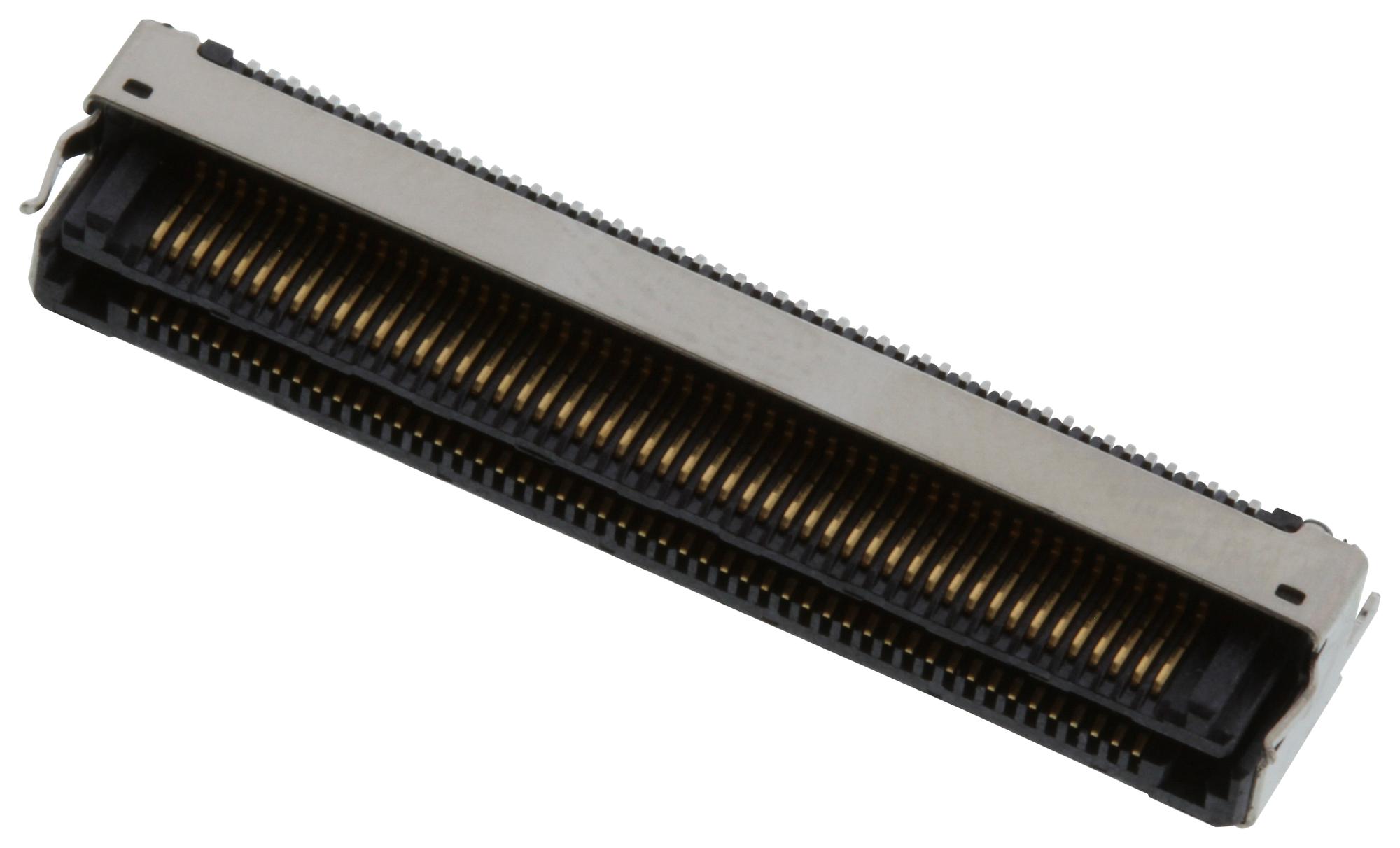

SAMTEC LSHM150040LDVASTR High-Speed Board-to-Board Connector
The LSHM series is a high-speed, high-density board-to-board connector system designed for reliable, low-cost connections in demanding electronic applications. Crafted from black Liquid Crystal Polymer insulators with phosphor bronze contact material, these connectors support current ratings of 2.0A per pin and operate effectively from -55°C to +125°C. They feature gold or tin plating over nickel for durability, RoHS compliance, and are ideal for stacking multiple connectors for complex PCB configurations. Suitable for applications requiring high retention, audible click, and flexible mounting options, these connectors guarantee optimal performance in demanding environments.
SAMTEC LSHM150040LDVASTR High-Speed Board-to-Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Mated Height: 3.50 mm (standard), available up to 12.00 mm
- Lead-Free Solderable: Yes
- Board Stacking: Supports multiple connectors per board
- Maximum Mated Lengths: Varies from 3.0 mm to 12.0 mm depending on style
- Processing: Compatible with lead-free soldering, high coplanarity, suitable for SMT
- Connector Styles: Shrouded, high retention, audible click feature
- Certification: Meets industry quality standards (see Samtec.com/quality)
Buy the Samtec Series LSHM High-Speed Connector: LSHM150040LDVASTR
Purchase the Samtec LSHM150040LDVASTR high-speed connector online today to ensure reliable, low-cost connections in your electronic assemblies. This versatile connector supports multiple stacking heights, offers durable gold or tin plating, and operates effectively over a wide temperature range. Designed for high-density applications, it features high retention, audible click, and RoHS compliance, providing unmatched performance in demanding environments. Buy now to experience fast delivery and the quality assurance that Samtec offers for your critical electronic projects.
Get Samtec LSHM150040LDVASTR today—built for precision, high-density stacking, and long-lasting durability in demanding electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC LSHM150040LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM150040LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM150040LDVASTR?
You can download the LSHM150040LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM150040LDVASTR?
SAMTEC
