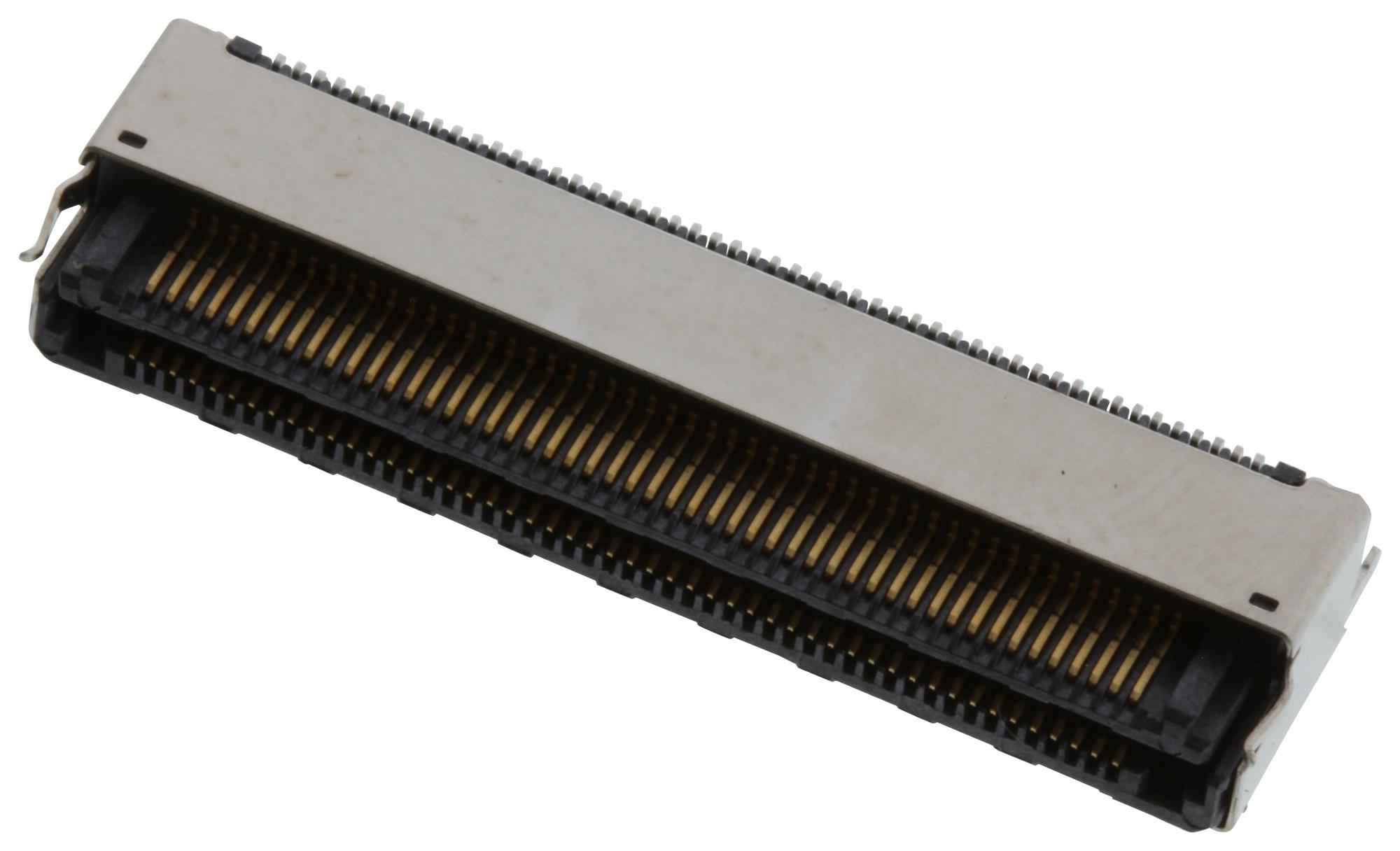

SAMTEC LSHM150060LDVASTR Hermaphroditic Strip Connector
The LSHM high-density hermaphroditic strip connector series offers excellent board stacking options with a slim profile of 5 mm and a mated height of 3 mm. Made from black Liquid Crystal Polymer with phosphor bronze contacts plated with gold or tin over nickel, it supports up to 2.0A per pin and temperatures ranging from -55°C to +125°C. This RoHS-compliant connector features a shrouded design with audible click for secure mating, suitable for high-speed, high-density applications requiring reliability and flexibility in PCB layouts.
SAMTEC LSHM150060LDVASTR Hermaphroditic Strip Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ" (1.27 μm) Ni
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Mated Height: 3.0 mm
- Mated Stack Height: 5 mm
- Board Stacking: Supports multiple connectors per board
- Lead-Free Solderable: Yes
- COPLANARITY: Max 0.10 mm (.004") for SMT
- Contact Ratings based on Samtec reference channels
- Connector Style: Shrouded, hermaphroditic, high-speed
- Design includes audible click for secure attachment
- Suitable for high-speed, high-density electronic applications
Buy the Samtec Series LSHM Hermaphroditic Strip Connector: LSHM150060LDVASTR
Purchase the Samtec LSHM150060LDVASTR hermaphroditic strip connector online today to ensure secure, high-speed, and reliable connections for your electronic projects. Designed with a slim profile of 5 mm and support for multiple stacking options, this connector is perfect for high-density circuit boards. Made from high-quality black Liquid Crystal Polymer with gold or tin over nickel plating, it supports up to 2.0A per pin and operates from -55°C to +125°C. Its shrouded design with audible click provides quick, secure mating, making it an excellent choice for demanding applications requiring durability and flexibility.
Get Samtec LSHM150060LDVASTR today—built for precision, high-density PCB stacking, and long-lasting reliability in demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC LSHM150060LDVASTR?
You can click on the BUY or RFQ button to purchase LSHM150060LDVASTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM150060LDVASTR?
You can download the LSHM150060LDVASTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM150060LDVASTR?
SAMTEC
