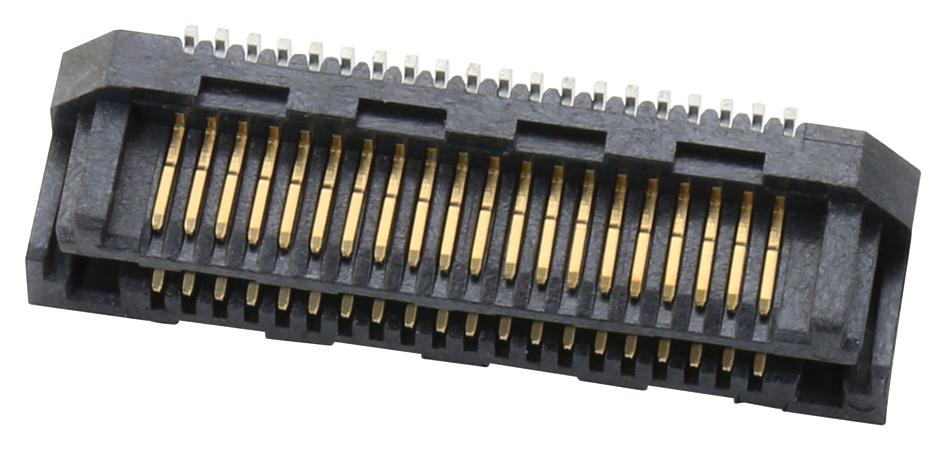

SAMTEC LSS12001FDVA High-Density Micro Pitch Connector
The LSS12001FDVA is a high-density, self-mating connector system designed for miniature electronic devices. Featuring a slim body design with multiple stacking options from 5.00 mm to 12.00 mm, it offers pitches of 0.50 mm, 0.635 mm, or 0.80 mm. The connector provides an audible click when mated, with mating and unmating forces approximately 4-6 times greater than typical micro pitch connectors. Its rugged hermaphroditic design includes optional shield and lubrication features, suitable for various high-reliability applications, and adheres to lead-free specifications with a temperature rating from -55°C to +125°C. The contact materials include gold flash or matte tin over phosphor bronze contacts, ensuring excellent electrical performance and durability.
SAMTEC LSS12001FDVA High-Density Micro Pitch Connector Specifications:
- Pitch options: 0.50 mm, 0.635 mm, 0.80 mm
- Stack height options: 5.00 mm to 12.00 mm
- Current ratings: LSHM 2.0 A per pin, LSS 1.7 A per pin, LSEM 1.8 A per pin
- Operating temperature: -55°C to +125°C
- Material: Black LCP insulator, phosphor bronze contacts with gold flash or matte tin finish
- Insulation resistance: Yes
- Coplanarity: Yes
- Lead-Free: Yes
- Durability: Mating forces 4-6x higher than typical micro pitch connectors
- Environmental compliance: UL listed, RoHS compliant
- Reel packaging: Tape & Reel options available
- Years of reliability: Designed for high-performance electronic devices and industrial automation
- Shielded option: Available
- Lubricated option: Available
Buy the Samtec Series Razor Micro Pitch Connectors: LSS12001FDVA
Order the Samtec LSS12001FDVA connector today and ensure reliable, high-performance connections in compact electronic devices. This easy-to-assemble, durable connector offers multiple stacking heights, optional shielding, and a rugged hermaphroditic design suitable for demanding industrial and consumer electronics. Its lead-free construction and wide temperature range make it an ideal choice for various high-reliability applications. With quick availability and excellent electrical performance, purchasing online guarantees you quality components that meet your design specifications efficiently.
Buy Samtec LSS12001FDVA now and experience unmatched durability, high-density connections, and versatile stacking options for advanced electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC LSS12001FDVA?
You can click on the BUY or RFQ button to purchase LSS12001FDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS12001FDVA?
You can download the LSS12001FDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS12001FDVA?
SAMTEC
