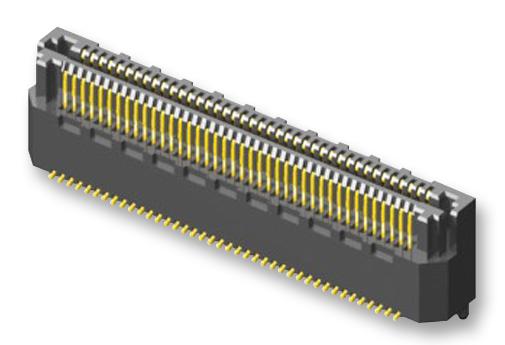

SAMTEC LSS12002FDVA PCB Connector
The LSS Series is a low-cost, high-performance PCB connector designed with a slim, shrouded row-to-row layout. It features a self-mating system with an audible click, reducing inventory costs and ensuring proper connection. Made with phosphor bronze contacts plated with either gold or Sn over Ni, it supports single-ended and differential pair signaling up to 20 Gbps and 18 Gbps respectively. The connector operates within -55°C to +125°C and is RoHS compliant. Its versatile stacking options make it suitable for high-density, space-constrained applications in electronics and manufacturing.
SAMTEC LSS12002FDVA PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 1.7A per pin (6 adjacent pins powered)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.10 mm (0.004") max
- Stacking options available for multiple connectors per board
- Mated Height: Styles range from 6.00 mm to 12.00 mm depending on configuration
- Performance: Single-ended 10 GHz/20 Gbps, Differential 9GHz/18 Gbps
- Compatible with LSS-120-03-F-DV-A, LSS-140-01-L-DV-A, and LSS-130-02-L-DV-A-K
Buy the Buy Samtec LSS Series Part Number LSS12002FDVA Online
Purchase the Samtec LSS Series PCB connector online today and benefit from its high-speed data transmission capabilities up to 20 Gbps, durable construction, and reliable mating system. Designed with a slim, shrouded layout and audible click for proper connection, it ensures optimal space utilization in high-density electronic projects. Whether for single-ended or differential pair signaling, this connector supports RoHS compliance and lead-free processing, making it ideal for modern manufacturing and electronic design applications. Secure your supply of this versatile and cost-effective connector now!
Order your Samtec Series LSS12002FDVA today and secure reliable high-speed connections with a slim, shrouded PCB connector ideal for dense electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC LSS12002FDVA?
You can click on the BUY or RFQ button to purchase LSS12002FDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS12002FDVA?
You can download the LSS12002FDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS12002FDVA?
SAMTEC
