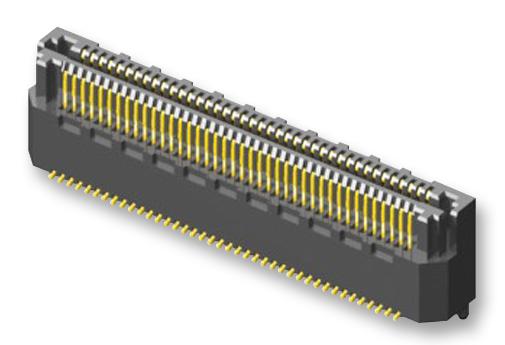

SAMTEC LSS12003FDVA Micro Pitch Connector
The LSS12003FDVA is a rugged, self-mating connector system designed with a 0.50 mm pitch, featuring multiple stack height options from 5.00 mm to 12.00 mm. It supports coplanar, perpendicular, and parallel mating systems, reducing inventory costs with its self-mating design. The connector includes options for shielding and lubrication, with current ratings up to 2.0 A per pin. Constructed from black LCP insulator with gold or tin plating on contacts, it ensures reliable electrical performance in demanding environments. Suitable for high-density PCB applications requiring robust, low-profile interconnects.
SAMTEC LSS12003FDVA Micro Pitch Connector Specifications:
- Pitch: 0.50 mm, 0.635 mm, 0.80 mm
- Stack Height Options: 5.00 mm to 12.00 mm
- Current per pin: LSHM 2.0 A, LSS 1.7 A, LSEM 1.8 A
- Operating Temperature Range: -55°C to +125°C
- Material: Black LCP insulator, gold or tin plated contacts
- Insulator Flammability: UL 94V-0
- Contact Plating: Gold flash or matte tin
- Mating Force: 4-6x greater than typical micro pitch connectors
- Dimensions: Actual size with detailed pin and tail measurements
- Design: Self-mating, PCB mounted, with shield and lubricated options
- Certifications: UL Listed, RoHS compliant
- Application: High-density electronic interconnection in compact devices
Buy the Buy Samtec LSS12003FDVA Part Number LSS12003FDVA Online
Purchase the Samtec LSS12003FDVA online today to experience reliable, high-density interconnections with a 0.50 mm pitch, featuring multiple stack heights, shield and lubrication options. Ideal for compact electronic assemblies requiring durable, precise, and efficient connectors. Designed for versatile PCB mounting, this rugged connector ensures excellent electrical performance and mechanical stability even in demanding environments. Order now to benefit from fast shipping, excellent quality, and the convenience of online shopping for your industrial and electronic projects.
Get Samtec LSS12003FDVA today—built for precision and long-lasting durability in high-density micro pitch applications.
Frequently Asked Questions
Where can I buy SAMTEC LSS12003FDVA?
You can click on the BUY or RFQ button to purchase LSS12003FDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS12003FDVA?
You can download the LSS12003FDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS12003FDVA?
SAMTEC
