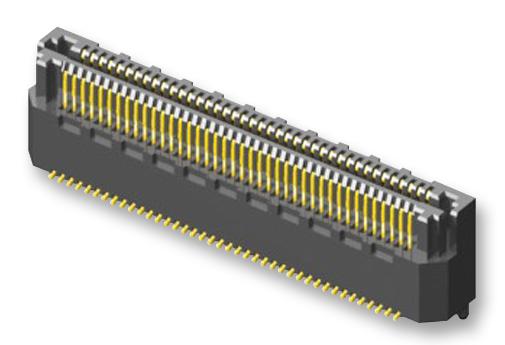

SAMTEC LSS12003LDVA Low Profile Signal Connector
The LSS12003LDVA series features a low-cost blade and beam contact system with high retention, audible click when mated, and shrouded slim row-to-row design suited for single-ended and differential pair signaling. Made from black liquid crystal polymer with phosphor bronze contacts and gold over Ni plating, it offers a 1.7A current rating per pin and operates from -55°C to +125°C. Ideal for applications requiring reliable mating, stacking flexibility, and RoHS compliance, these connectors are suitable for high-speed signal transmission up to 20 Gbps at 0.635 mm pitch.
SAMTEC LSS12003LDVA Low Profile Signal Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50u" (1,27 um) Ni
- Current Rating: 1.7A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm, 0.004 inch max
- Stacking Options: For more than two connectors, contact supplier
- Mated Height Variations: 6.00 mm to 12.00 mm depending on style
- Performance: Up to 20 Gbps single-ended, 18 Gbps differential at 0.635 mm pitch
- Connector Style: Self-mating with audible click, shrouded design
- Application: High-speed signal transmission, signal integrity, multi-layer stacking
- Certifications: RoHS compliant
Buy the Samtec Series LSS Low Cost Blade & Beam Contact: LSS12003LDVA
Order the Samtec LSS12003LDVA connector today online to enjoy fast shipping, proven reliability, and high-speed data transmission up to 20 Gbps. Perfect for professional electronics, high-speed data systems, and stacking applications, this connector ensures excellent performance with audible mating click for secure connections and RoHS compliance. Ideal for engineers and technicians seeking quality, stack flexibility, and a robust solution for modern electronic devices. Purchase now to simplify your assembly and ensure connection integrity.
Buy Samtec LSS12003LDVA now and experience unmatched reliability and high-speed performance in your signal applications.
Frequently Asked Questions
Where can I buy SAMTEC LSS12003LDVA?
You can click on the BUY or RFQ button to purchase LSS12003LDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS12003LDVA?
You can download the LSS12003LDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS12003LDVA?
SAMTEC
