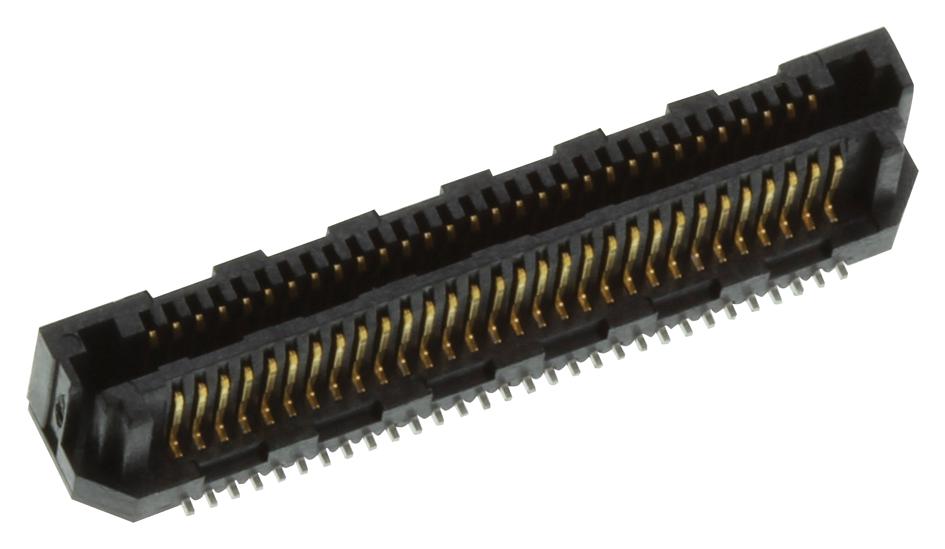

SAMTEC LSS13001LDVA LSS Series Connector
The LSS13001LDVA series connector features a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating over nickel, supporting a current of 1.7 A per pin. Designed for high-temperature applications, it operates from -55°C to +125°C and is RoHS compliant. Suitable for SMT applications, it offers coplanarity of 0.10 mm and is compatible with flexible two-piece power and signal solutions. Its ruggedized, shrouded design includes features like audible click mating, high retention contacts, and optional locking clips to ensure secure connections in industrial and electronic systems.
SAMTEC LSS13001LDVA LSS Series Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 microinch Ni
- Current Rating: 1.7 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity Tolerance: 0.10 mm (0.004") maximum
- Mating Height Options: 6.00 mm to 12.00 mm
- Pitch: 0.635 mm (0.025")
- Compatibility: Suitable for power and signal applications, flexible stacking and direct mating
- Additional features: Audible click, high retention contacts, ruggedized design, locking clip option, various plating options, and multiple pin counts
Buy the Samtec LSS13001LDVA – Reliable SMT Connector for Industrial Applications
Order the LSS13001LDVA from Samtec today to ensure secure, high-performance connections in your industrial and electronic systems. With advanced design features like audible click mating, high retention contacts, and compatibility with power and signal modules, this ruggedized connector supports RoHS compliance and lead-free soldering. Its versatile stacking options, broad temperature range, and gold or tin plating options make it ideal for demanding applications requiring dependable, durable connections with quick installation. Elevate your electronic assemblies by purchasing online now.
Buy Samtec LSS13001LDVA now and experience unmatched reliability, secure mating, and high-temperature performance for your industrial electronics projects.
Frequently Asked Questions
Where can I buy SAMTEC LSS13001LDVA?
You can click on the BUY or RFQ button to purchase LSS13001LDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS13001LDVA?
You can download the LSS13001LDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS13001LDVA?
SAMTEC
