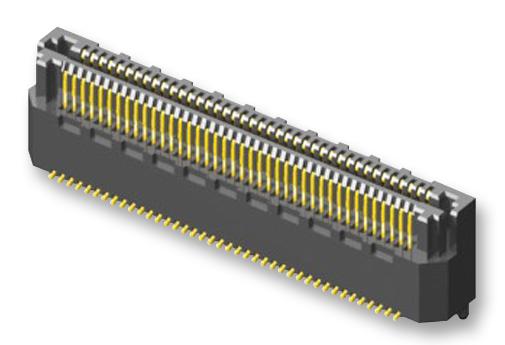

SAMTEC LSS13003FDVA Board-to-Board Connector
The LSS Series is a cost-effective, high-density, board-to-board connector system featuring self-mating blade and beam contacts with audible click confirmation. Designed with a flexible array of heights and styles, it offers reliable electrical performance up to 20 Gbps for differential signaling at 9 GHz. Made from black liquid crystal polymer, with phosphor bronze contacts plated in gold over nickel, it supports lead-free soldering, RoHS compliance, and an operating temperature range of -55°C to +125°C. Suitable for compact, high-speed signal applications requiring multiple stack heights and configurations.
SAMTEC LSS13003FDVA Board-to-Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1,27 um) Ni
- Current Rating: 1.7 A per pin (6 powered pins)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.10 mm (.004") max
- Stack Heights: Varies (up to 12.00 mm) depending on style
- Number of Pins: Configurable, common styles are 2 to 8 pins with different pitches
- Insertion Loss: Rated at 34 B
- Signaling: Single-ended up to 20 Gbps, differential pair up to 18 Gbps at 0.025" pitch
Buy the Buy Samtec LSS Series Part Number LSS13003FDVA Online
Enhance your electronic assembly with the Samtec LSS Series connector, offering high-speed data transfer up to 20 Gbps, reliable gold-plated contacts, and versatile stack heights. This cost-effective, RoHS compliant connector features an audible click for proper mating, supporting lead-free soldering and SMT applications. Its robust construction ensures durability in demanding environments while reducing inventory costs through self-mating design. Ideal for high-density, high-speed signaling in compact spaces, the LSS Series delivers exceptional performance and flexible configurations for your advanced electronic projects.
Buy Samtec LSS13003FDVA now and experience unmatched reliability and high-speed performance for your electronic connectors.
Frequently Asked Questions
Where can I buy SAMTEC LSS13003FDVA?
You can click on the BUY or RFQ button to purchase LSS13003FDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS13003FDVA?
You can download the LSS13003FDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS13003FDVA?
SAMTEC
