SAMTEC LSS14003LDVA High-Speed PCB Connector
The LSS series is a cost-effective, surface-mount connector system designed for high-speed digital applications with single-ended and differential signaling capabilities. It features a slim, shrouded row-to-row design, provides high retention contacts, and includes an audible click for proper mating. With a variety of heights, styles, and optional gold plating, it ensures reliable connections suitable for PCB stacking and complex assemblies. The connector is RoHS compliant, lead-free solderable, and operates within a temperature range of -55°C to +125°C, making it ideal for demanding electronic environments.
SAMTEC LSS14003LDVA High-Speed PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni (1.27 µm)
- Current Rating: 1.7A per pin (6 adjacent pins powered)
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004") max
- Stacking Options: Multiple heights and styles available with contact for additional configurations
- Mated Height: Varies by style, from 6.00 mm to 12.00 mm
- Performance Data: 10 GHz / 20 Gbps for single-ended, 9 GHz / 18 Gbps for differential pairs
- Design Features: Self-mating, reduces inventory, high retention, audible click, slim row-to-row
- Compatibility: Compatible with LSS-120-03-F-DV-A, LSS-140-01-L-DV-A, LSS-130-02-L-DV-A-K
- Standards: RoHS compliant, lead-free

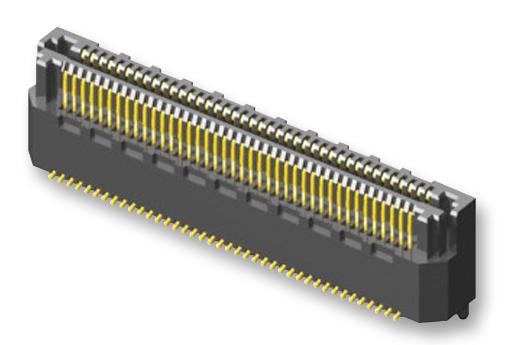

Buy the Buy Samtec LSS Series Connector Part Number LSS14003LDVA Online
Discover the high-speed digital connection with our reliable, cost-effective PCB connectors designed for compact electronic assemblies. Featuring a shrouded slim design, audible click, and excellent retention, this connector ensures secure connections in demanding environments. Perfect for PCB stacking and array configurations, it supports both single-ended and differential signaling with operating temperatures from -55°C to +125°C. RoHS compliant and lead-free, it offers a durable, high-performance solution for modern electronic projects. Order online today!
Order your Samtec LSS14003LDVA connector today and benefit from high-speed digital performance, reliable mating, and flexible stacking options.
Frequently Asked Questions
Where can I buy SAMTEC LSS14003LDVA?
You can click on the BUY or RFQ button to purchase LSS14003LDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSS14003LDVA?
You can download the LSS14003LDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSS14003LDVA?
SAMTEC
