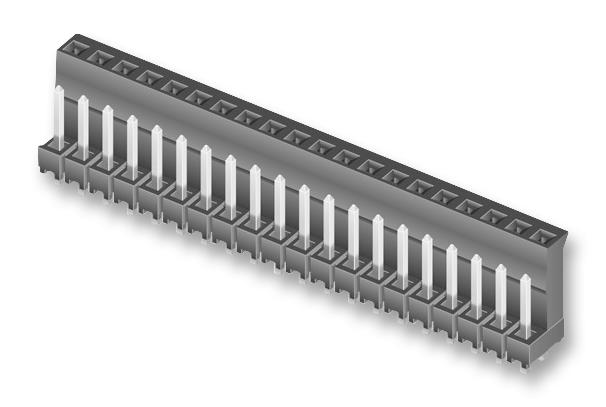

SAMTEC LST11807FD Self-Mating Connector
The LST series from Samlec are hermaphroditic self-mating connectors featuring a 2.54 mm pitch, designed for reliable self-connection in electronic assemblies. Made with phosphor bronze contact and terminal materials and coated with gold or tin plating, these connectors support operating temperatures from 35°C to 125°C. They are RoHS compliant, lead-free, and suitable for wave soldering. The connectors feature a locking click for secure mating, compatible with headers and sockets, and designed for up to 100 mating cycles, offering durability and easy mating with polarization options.
SAMTEC LST11807FD Self-Mating Connector Specifications:
- Pitch: 2.54 mm (0.100 inches)
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 μin (1.27 μm) Ni or Tin
- Operating Temperature Range: 35°C to 125°C (Gold), 55°C to 105°C (Tin)
- Insertion Depth: 6.35 mm (0.250 inches)
- Cycle Life: 100 mating cycles with 10 μin (0.25 μm) Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave Only
- Number of Pins: 4 per row
- Number of Positions: 4 (2.54 mm pitch)
- Locking feature with audible click for secure mating
- Compatible with header and socket systems
- Standard plating options available, other options upon request
Buy the Samlec LST Series – Reliable Self-Mating Connectors for Industrial Applications
Experience the convenience of ordering Samlec LST series self-mating connectors online. Designed for durability, easy mating, and secure connections, these connectors support a wide range of industrial and electronic applications. They feature polarization, locking mechanisms, and high-temperature tolerance, ensuring reliable operation and long service life. Easy to install and RoHS compliant, they are perfect for demanding manufacturing environments. Purchase now to enhance your electronic assembly with high-quality, tested connectors that improve connection integrity and operational safety.
Get Samlec LST series connectors today—built for high durability, easy mating, and reliable electronic connections in various industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC LST11807FD?
You can click on the BUY or RFQ button to purchase LST11807FD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LST11807FD?
You can download the LST11807FD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LST11807FD?
SAMTEC
