SAMTEC MCX7PCHSTCA3 RF coaxial connector
The MCX7 series connectors are compact RF coaxial connectors designed for high-frequency applications up to 4.5 GHz. Made with brass shells and PTFE insulators, these connectors offer low contact resistance and excellent impedance matching with an impedance of 750 ohms. They support a working voltage up to 170 Vrms and have a maximum VSWR of 1.3, ensuring reliable signal integrity. Suitable for PCB mounting, these connectors are RoHS compliant, lead-free, and feature easy soldering and crimping options for durable connections in RF systems.
SAMTEC MCX7PCHSTCA3 RF coaxial connector Specifications:
- Shell Material: Brass
- Insulator Material: PTFE
- Impedance: 750 ohms
- Working Voltage: 170 Vrms max
- Dielectric Withstanding Voltage: 500 Vrms min
- Contact Resistance: Center contact 5mΩ max, Outer contact 2.5mΩ max
- Insulator Resistance: 1000 MΩ min
- VSWR: 1.3 max
- Operating Temperature: -55°C to +135°C
- Compatible with PCB mounting, soldered or crimped connections, RoHS compliant

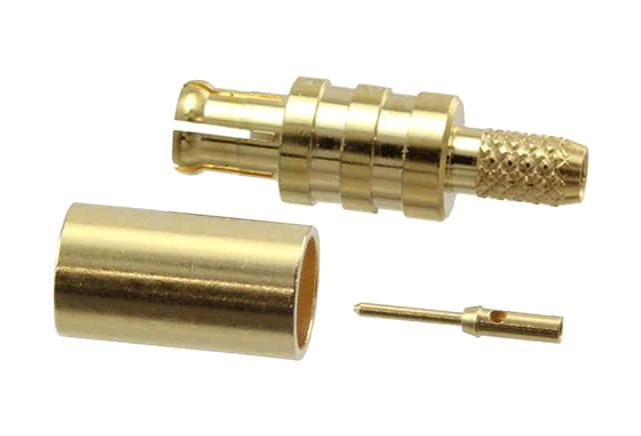

Buy the Samtec MCX7P – Reliable RF Coaxial Connectors for Industrial Applications
Enhance your RF system connections with the Samtec MCX7P coaxial connector, designed for high-frequency applications up to 4.5 GHz. Made with durable brass shells and high-quality PTFE insulators, these connectors ensure low contact resistance and excellent impedance matching at 750 ohms. They support up to 170 Vrms and feature easy soldering and crimping for secure PCB mounting. RoHS compliant and lead-free, the MCX7P connectors provide reliable, stable connections suitable for a wide range of industrial RF applications.
Buy Samtec MCX7P RF coaxial connectors now and experience unmatched reliability and high-frequency performance for your industrial RF systems.
Frequently Asked Questions
Where can I buy SAMTEC MCX7PCHSTCA3?
You can click on the BUY or RFQ button to purchase MCX7PCHSTCA3 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MCX7PCHSTCA3?
You can download the MCX7PCHSTCA3 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MCX7PCHSTCA3?
SAMTEC
