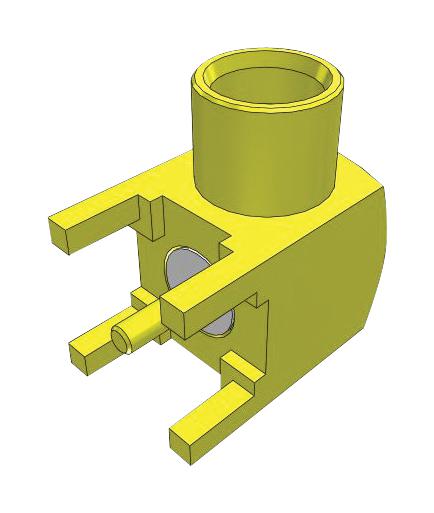

SAMTEC MCXJPHRATH1 RF Connector
The MCX-J-P-H-RA-TH1 is a high-performance RF connector designed for demanding industrial and communication applications. Made with durable BeCu and brass contact and shell materials, it supports a frequency range up to 6 GHz with 50 Ω impedance. The connector is RoHS compliant, lead-free, and features PTFE insulation for excellent electrical performance, operating from -65°C to +125°C. Its right-angle design ensures convenient PCB mounting, making it suitable for space-constrained environments requiring reliable high-frequency connections.
SAMTEC MCXJPHRATH1 RF Connector Specifications:
- Insulator Material: PTFE
- Contact Material: BeCu, Brass
- Shell Material: Brass
- Operating Temp Range: -65 °C to +125 °C
- Impedance: 50 Q
- Dielectric Withstanding Voltage: 1000 Vrms min, 50 Hz
- Dielectric Working Voltage: 335 Vrms max
- Frequency Range: 0~6 GHz
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Version Available: 75 Q
Buy the Samlec MCX-J-P-H-RA-TH1 – Reliable RF Connector for Industrial Applications
Purchase the Samlec MCX-J-P-H-RA-TH1 RF connector online today to ensure reliable high-frequency connections for industrial and communication systems. Featuring a sturdy brass shell and BeCu contacts, this RoHS-compliant connector supports up to 6 GHz frequency, offering excellent electrical performance and durability. Its right-angle design simplifies mounting in tight spaces, and the wide operating temperature range ensures suitability for various environmental conditions. Trust in Samtec’s quality for your RF connectivity needs—order now to benefit from quick shipping and expert support.
Get Samlec MCX-J-P-H-RA-TH1 today—built for precision and long-lasting durability in high-frequency environments.
Frequently Asked Questions
Where can I buy SAMTEC MCXJPHRATH1?
You can click on the BUY or RFQ button to purchase MCXJPHRATH1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MCXJPHRATH1?
You can download the MCXJPHRATH1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MCXJPHRATH1?
SAMTEC
