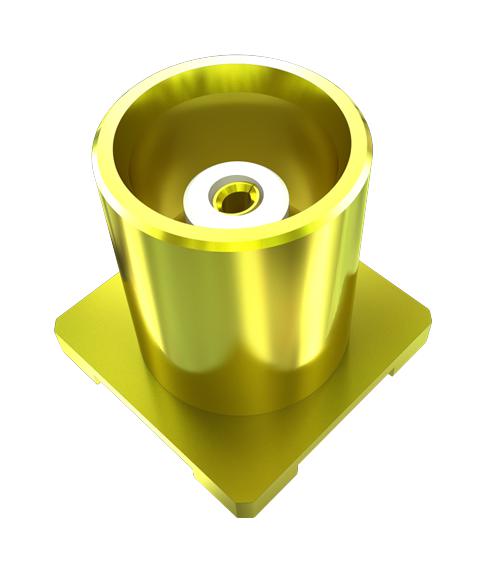

SAMTEC MCXJPHSTSM1 RF Compact Connector
The MCX series connector from Samtec features a compact, high-frequency design suitable for a wide range of RF applications. Made with PTFE insulators and BeCu and Brass contacts, it supports frequencies up to 6 GHz and operates within -65°C to +125°C. The shell material is Brass, ensuring durability and reliable performance. This right-angle connector features gold-plated contacts for excellent conductivity, and RoHS compliance. Its low impedance of 50Ω makes it ideal for signal integrity in RF and microwave systems, with professional-grade construction for demanding environments.
SAMTEC MCXJPHSTSM1 RF Compact Connector Specifications:
- Insulator Material: PTFE
- Contact Material: BeCu, Brass
- Shell Material: Brass
- Operating Temperature Range: -65°C to +125°C
- Impedance: 50 Ω
- Dielectric Withstanding Voltage: 1000 Vrms min, 50 Hz
- Dielectric Working Voltage: 335 Vrms max
- Frequency Range: 0~6 GHz
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Available Version: 75 Ω
Buy the Buy Samtec MCX Part Number MCXJPHSTSM1 Online
Experience reliable high-frequency signal transmission with the Samtec RF connector. Featuring PTFE insulator, brass shell, and gold-plated contacts, it supports up to 6 GHz frequencies. Designed for durability in demanding environments, this RoHS-compliant connector ensures excellent performance and easy soldering. Perfect for RF, microwave, and communication systems, it offers a compact, right-angle design ideal for space-constrained applications. Order online today for fast delivery and professional-quality RF connections.
Get Samtec MCXJPHSTSM1 today—built for precision, high-frequency performance, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC MCXJPHSTSM1?
You can click on the BUY or RFQ button to purchase MCXJPHSTSM1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MCXJPHSTSM1?
You can download the MCXJPHSTSM1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MCXJPHSTSM1?
SAMTEC
