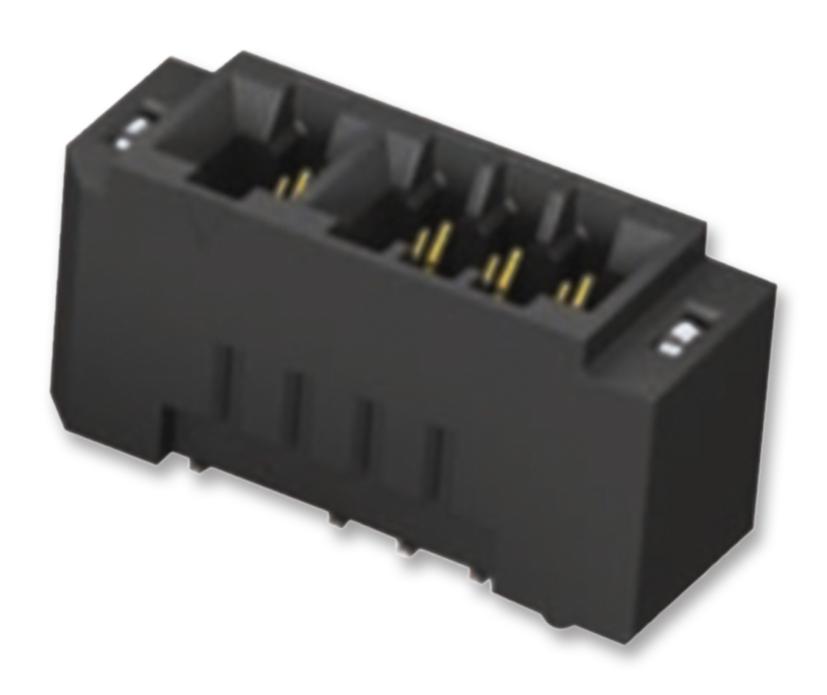

SAMTEC MEC20801LDVWT Edge Card Socket
The MEC2 series edge card socket is designed for high-frequency applications, supporting single-ended signaling up to 12.5 GHz and 25 Gbps, and differential pairs up to 14.5 GHz and 29 Gbps. It features a black or natural liquid crystal polymer insulator, BeCu contacts with Sn or Au plating over Ni, and is RoHS compliant with lead-free soldering. Compatible with multiple card thicknesses, it offers excellent signal integrity, precise PCB layout options, and reliable alignment pins, making it ideal for advanced electronic and networking equipment. Suitable for applications requiring high speed and durability.
SAMTEC MEC20801LDVWT Edge Card Socket Specifications:
- Insulator Material: Liquid Crystal Polymer (Black or Natural)
- Contact Material: BeCu
- Plating: Sn or Au over 50μ
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 3.5 A per pin (2 adjacent pins powered)
- Voltage Rating: 238 VAC
- RoHS Compliance: Yes
- Lead-Free Soldérable: Yes
- Signal/ground Patterns: Alternative configurations available for different applications
- Rated Insertion Loss: 3 dB at specified frequencies
- Maximum Signal Frequencies: Single-ended - 12.5 GHz, 25 Gbps; Differential - 14.5 GHz, 29 Gbps
- Connector Size Options: Various card thicknesses from 0.05 mm to 0.50 mm
- Dimensions: Customizable per card thickness and positions, model-specific
Buy the Buy Samtec MEC2 Edge Card Socket Part Number MEC20801LDVWT Online
Secure your high-frequency electronic connections with the Samtec MEC2 edge card socket. Engineered for precise performance at frequencies up to 25 Gbps, it features a robust liquid crystal polymer insulator, BeCu contacts with gold or tin plating, and RoHS compliance. Suitable for various card thicknesses, the socket offers excellent signal integrity, reliable alignment pins, and compatibility with high-speed applications. Purchase online today for durable, high-performance connectivity solutions designed for advanced electronic systems and networking equipment.
Get Samtec MEC2 edge card socket today—designed for high-speed, high-frequency electronic connections with durable construction and precise alignment.
Frequently Asked Questions
Where can I buy SAMTEC MEC20801LDVWT?
You can click on the BUY or RFQ button to purchase MEC20801LDVWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC20801LDVWT?
You can download the MEC20801LDVWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC20801LDVWT?
SAMTEC
