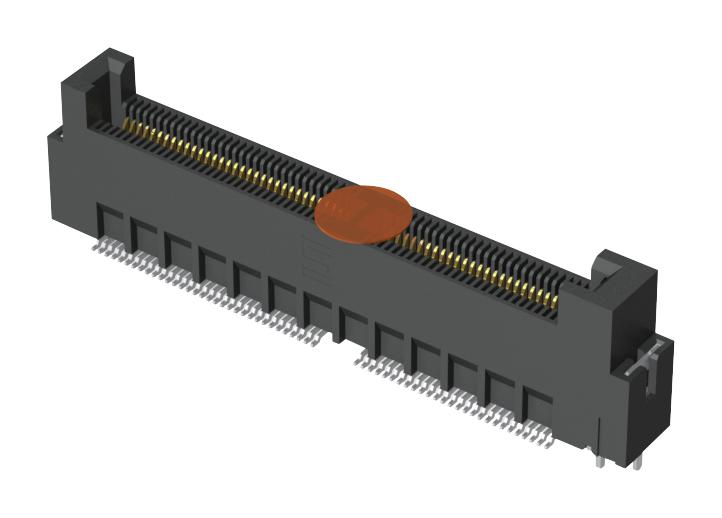

SAMTEC MEC506001LDVW1KTR Edge Card Connector
Samtec's MEC5 Series high-speed edge card interconnect system offers reliable, high-performance connections for applications such as computers, telecom, industrial, and medical devices. Featuring the industry's first 0.50 mm pitch edge card with a justification beam, it allows standard board tolerances and reduces costs, achieving 50% lower mating tolerance. Supports up to 300 I/O channels, is PCIe Gen 4 compatible, and includes standard alignment pins and card polarization. Suitable for high-performance environments, it mates with 1.60 mm thick cards, ensuring durability, precision, and versatility in demanding applications.
SAMTEC MEC506001LDVW1KTR Edge Card Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Plating Thickness: 50 μin (1.27 μm)
- Operating Temperature Range: -85°C to +125°C
- Current Rating: 1.5 A per pin
- Voltage Rating: 125 VAC/175 VDC
- Number of Positions: Up to 50 positions
- Contact Resistance: Low resistance for high-speed data transfer
- Mating Cycles: Designed for high durability and repeated mating
- Supports high-speed protocols including PCIe 4.0
- Mates with 1.60 mm thick edge cards
- RoHS Compliant
- Lead-Free and Solderable
Buy the Samtec Series MEC5 High-Speed Edge Card Connector: MEC506001LDVW1KTR
Purchase the Samtec MEC5 Series edge card connector online today and benefit from a high-speed, durable connection solution. This connector features 0.50 mm pitch, supports PCIe Gen 4, and has up to 300 I/O channels, making it suitable for computers, industrial equipment, telecom, and medical devices. Its robust construction with gold or tin plating over nickel ensures excellent conductivity and corrosion resistance. Designed for extensive mating cycles and demanding environments, this connector guarantees reliable performance and precision for your high-performance projects.
Order your Samtec Series MEC5 high-speed edge card connector today and enhance your electronics with reliable, high-performance interconnects designed for demanding applications.
Frequently Asked Questions
Where can I buy SAMTEC MEC506001LDVW1KTR?
You can click on the BUY or RFQ button to purchase MEC506001LDVW1KTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC506001LDVW1KTR?
You can download the MEC506001LDVW1KTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC506001LDVW1KTR?
SAMTEC
