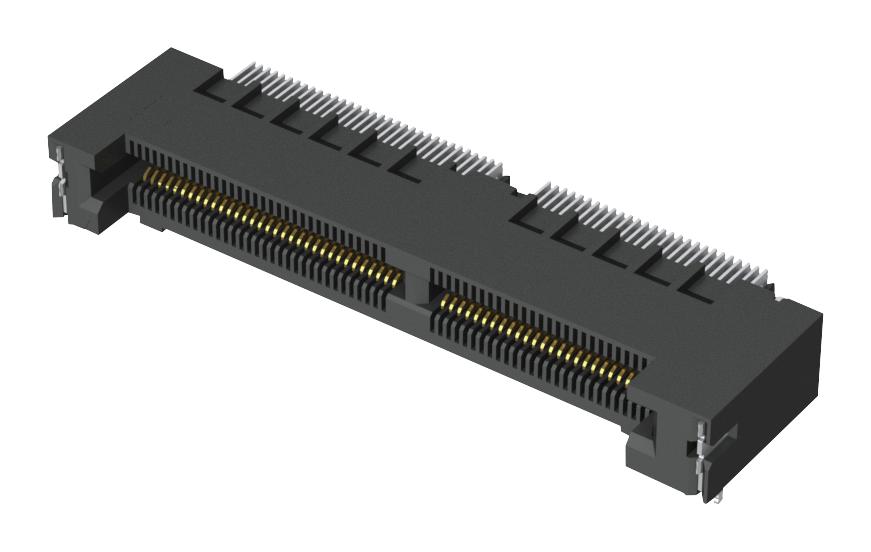

SAMTEC MEC506001LRAW1TR Edge Card Interconnect
Samtec's MEC5 Series high-speed edge card interconnects are ideal for computing, telecommunications, industrial, medical, and aerospace applications. Featuring 0.50 mm pitch with a justification beam, these connectors support up to 300 I/O connections and are PCIe Gen 4 compliant, ensuring high performance and cost efficiency. They include standard alignment pins, card polarization, and are designed to mate with 1.60 mm thick edge cards. The series ensures reliability with RoHS compliance and lead-free soldering options, suitable for demanding industry environments.
SAMTEC MEC506001LRAW1TR Edge Card Interconnect Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Plating Thickness: 50 p" (1.27 μm) Ni
- Operating Temp Range: -85°C to +125°C
- Current Rating: 1.55 A per pin
- Voltage Rating: 125 VAC/175 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 0.50 mm
- Number of Positions: Up to 300 I/O connections
- Compatibility: Supports 1.60 mm thick edge cards
- Features: Standard alignment pins, card polarization, justification beam
- Application: Computers, telecommunications, industrial equipment, medical devices, aerospace
Buy the Samtec MEC5 – Reliable Edge Card Interconnects for Industrial Applications
Discover the high-performance, reliable edge card interconnects from Samtec's MEC5 Series, supporting PCIe Gen 4 and up to 300 I/O connections. Perfect for industrial, medical, and aerospace technologies, these connectors ensure precise alignment and robust performance with standard 0.50 mm pitch and card polarization features. Designed for demanding environments, they are RoHS compliant and lead-free, offering durable solderability, and supporting multiple applications that require high-speed data transfer, making your projects more efficient and cost-effective.
Order your Samtec MEC5 Series MEC506001LRAW1TR today and enhance your industrial or high-speed electronic projects with dependable edge card connections.
Frequently Asked Questions
Where can I buy SAMTEC MEC506001LRAW1TR?
You can click on the BUY or RFQ button to purchase MEC506001LRAW1TR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC506001LRAW1TR?
You can download the MEC506001LRAW1TR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC506001LRAW1TR?
SAMTEC
