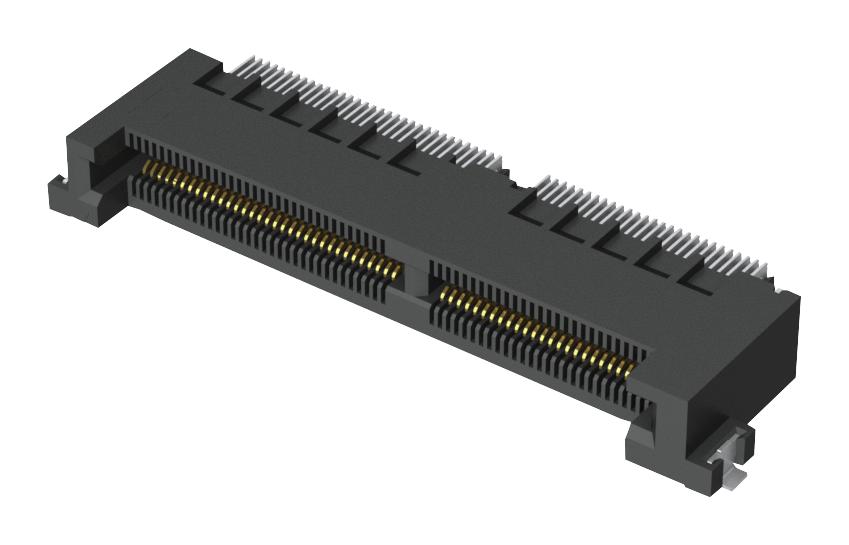

SAMTEC MEC506001LRAW2TR High-Speed Edge Card Connector
Samtec's MEC5 Series high-speed edge card interconnect system features a 0.50 mm pitch, integrated justification beam, and supports up to 300 I/O channels. PCIe Gen 4 compliant, it includes standard alignment pins, card polarization, and mates with 1.60 mm thick cards. Designed for diverse applications such as computer hardware, peripherals, data processing, industrial, medical, military, telecommunications, and testing, this connector ensures reliable, high-performance connections with reduced mating tolerances and versatile mounting options, making it ideal for demanding electronic systems and modular designs.
SAMTEC MEC506001LRAW2TR High-Speed Edge Card Connector Specifications:
- Pitch: 0.50 mm
- Supports up to 300 I/O channels
- PCIe Gen 4 compliant
- Integrated justification beam
- Supports card thickness: 1.60 mm
- Includes standard alignment pins and polarization
- Materials: Black LCP insulator, Phosphor Bronze contact
- Plating: Au or Sn over Ni
- Operating Temp Range: -85°C to +125°C
- Current Rating: 1.5 A per pin
- Voltage Rating: 125 VAC / 175 VDC
- RoHS Compliant
- Lead-Free Solderable
- Mounting: Through-hole and surface-mount options
- Supported applications: computer hardware, peripherals, industrial, medical, military, telecommunications, test systems
Buy the Samtec MEC5 Series – Reliable Edge Card Connectors for Industrial Applications
Purchase the Samtec MEC5 Series high-speed edge card connector online today to enhance your electronic systems with reliable high-speed connectivity, supporting up to 300 I/O channels, PCIe Gen 4 compliance, and versatile mounting options. Designed for demanding applications across industries like medical, military, and industrial automation, these connectors feature a 0.50 mm pitch, integrated justification beam, and durable materials. Get the trusted quality and performance your projects require with quick online ordering and fast delivery.
Order your Samtec MEC5 Series high-speed edge card connector today and ensure your electronic systems benefit from robust, PCIe Gen 4 compatibility and high channel support.
Frequently Asked Questions
Where can I buy SAMTEC MEC506001LRAW2TR?
You can click on the BUY or RFQ button to purchase MEC506001LRAW2TR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC506001LRAW2TR?
You can download the MEC506001LRAW2TR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC506001LRAW2TR?
SAMTEC
