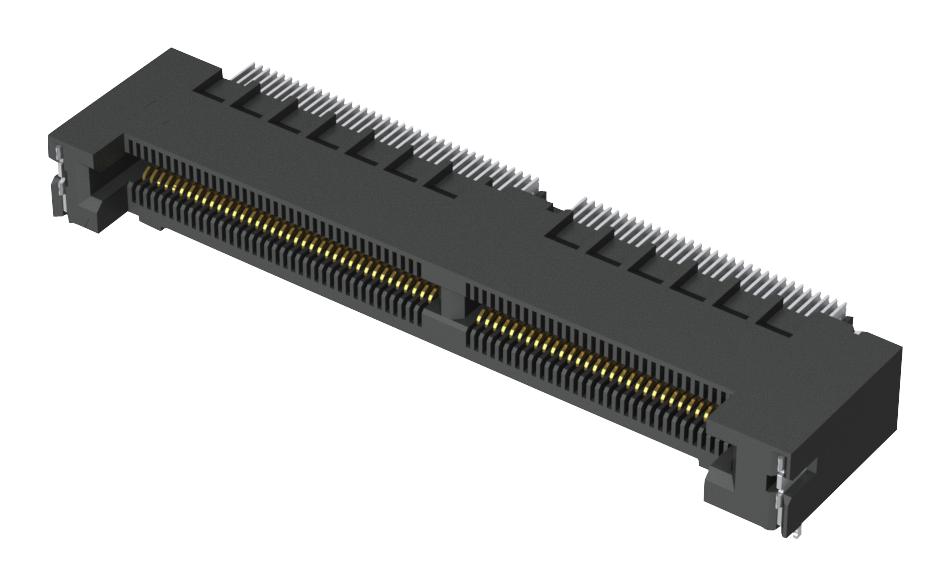

SAMTEC MEC507001LRAW1TR High-Speed Edge Card Connector
Samtec's MEC5 Series high-speed edge card interconnect system features a 0.50 mm pitch with a justification beam, enabling use with standard board tolerances and reducing mating tolerance by 50%. It supports up to 300 I/O connections and meets PCIe Gen 4 standards. The system includes standard alignment pins and card polarization for correct connection. Compatible with 1.60 mm thick edge cards, it is ideal for computer hardware, peripherals, data and computing equipment, industrial machines, medical devices, military systems, telecom, and test equipment. Its durable construction ensures reliable performance in demanding environments.
SAMTEC MEC507001LRAW1TR High-Speed Edge Card Connector Specifications:
- Pitch: 0.50 mm
- Supports up to 300 I/O connections
- Compatibility: PCIe Gen 4
- Suitable for 1.60 mm thick edge cards
- Includes standard alignment pins and polarization
- Operating Temp Range: -85°C to +125°C
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni, 50 μin (1.27 μm)
- Voltage Rating: 125 VAC / 175 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Buy Samtec MEC5 Series Edge Card Interconnect Part Number MEC507001LRAW1TR Online
Purchase the Samtec MEC5 Series edge card connector MEC507001LRAW1TR online today for robust performance and high-speed data support. This connector supports PCIe Gen 4 standards, offers up to 300 I/O connections, and features durable gold or tin plating for excellent corrosion resistance. Its flexible design accommodates 1.60 mm thick edge cards and incorporates alignment pins and polarization for correct mating. Ideal for computer hardware, industrial, medical, telecommunications, and testing applications requiring reliable, high-density connections, available for quick online ordering with fast shipping.
Buy Samtec MEC5 Series edge card connector MEC507001LRAW1TR now and experience reliable high-speed data transfer with PCIe Gen 4 compliance.
Frequently Asked Questions
Where can I buy SAMTEC MEC507001LRAW1TR?
You can click on the BUY or RFQ button to purchase MEC507001LRAW1TR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC507001LRAW1TR?
You can download the MEC507001LRAW1TR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC507001LRAW1TR?
SAMTEC
